Individual hose record
DS2093663 Hose Repair Specifications
Excavator · Doosan · DX60R · Pedal
Finished length245 mm
Locate this hose

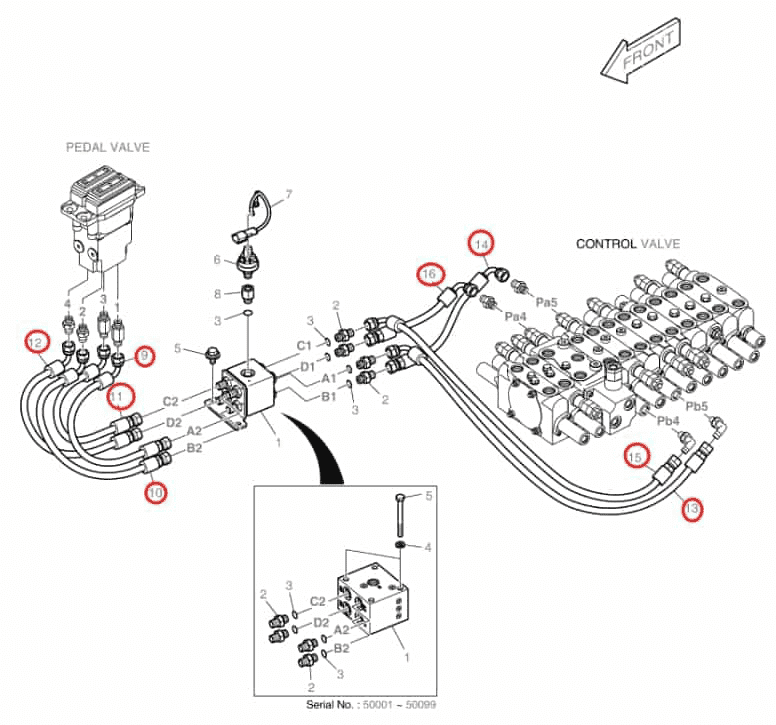

Installation diagram — Pipe No. 16
Locate Pipe No. 16 in the diagram, then confirm part number DS2093663 before removing the hose.
Repair specifications
- Part number
- DS2093663
- Diagram pipe number
- 16
- Installation route
- 分配阀PA4口~梭阀(踏板)D1口
- Hose specification
- -
- Finished length
- 245 mm
- Left fitting
- Female threadOriginal Chinese: 内螺纹
- Right fitting
- 90° elbow, female threadOriginal Chinese: 90°内螺纹
- Quantity
- 1
Same system
Related Hoses
- Length
- 720 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Length
- 650 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
For reference only. Confirm the actual hose before fabrication.
