6W-7640 Hose Repair Specifications

Excavator · Caterpillar · CAT®215D · Attachments

Finished length1,400 mm

Locate this hose

Installation diagram — Pipe No. 8

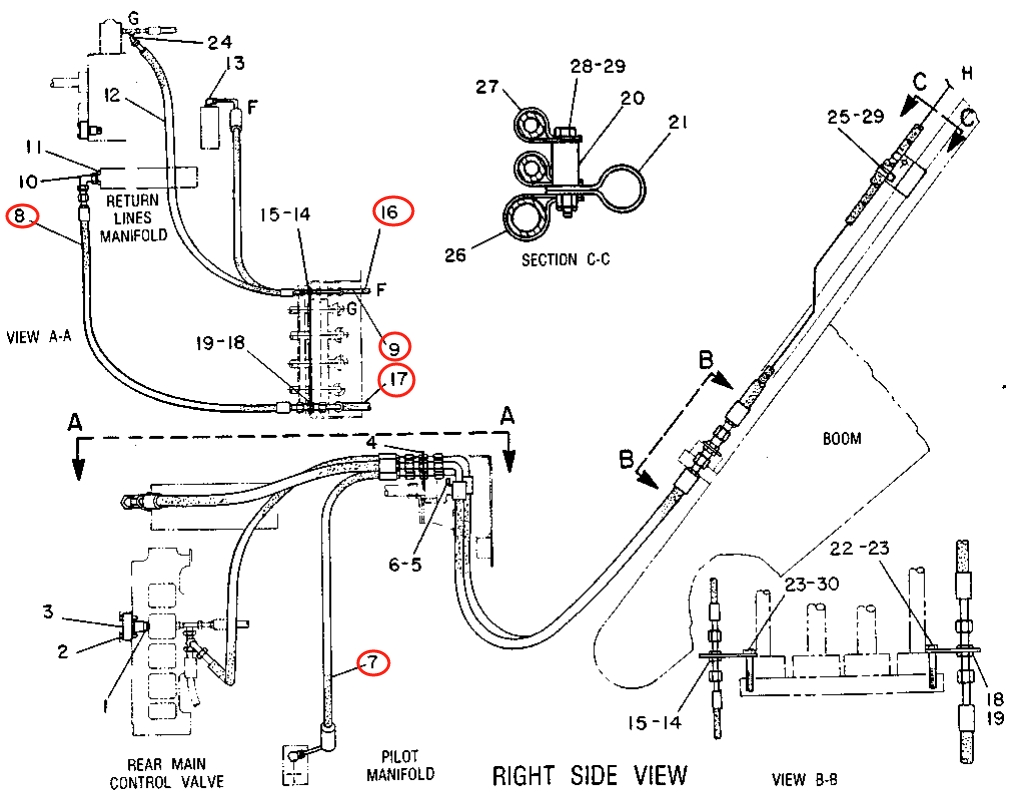

Locate Pipe No. 8 in the diagram, then confirm part number 6W-7640 before removing the hose.

Caterpillar CAT®215D installation diagram showing hydraulic hose 6W-7640 at Pipe No. 8 — Caterpillar CAT®215DPart 6W-7640 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: 6W-7640
Diagram pipe number: 8
Installation route: 大臂(附加装置)~回油铁管
Hose specification: DN19;4SP-12;28Mpa
Finished length: 1,400 mm
Working pressure: 28 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 39

7V-1038

Installation route: 过渡阀块(驾驶室前)~接线板(驾驶室中)

Length: 279 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 59

3V-6802

Installation route: 选择阀~过渡阀块(分配阀后)

Length: 1,320 mm
Specification: DN10;4SP-6;28Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 14

5C-4391

Installation route: 溢流阀(大臂)~履带制动阀

Length: 670 mm
Specification: DN10;4SP-6;28Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
