Individual hose record

8U-4953 Hose Repair Specifications

Excavator · Caterpillar · CAT®211B · Boom Assembly

Finished length800 mm

Locate this hose

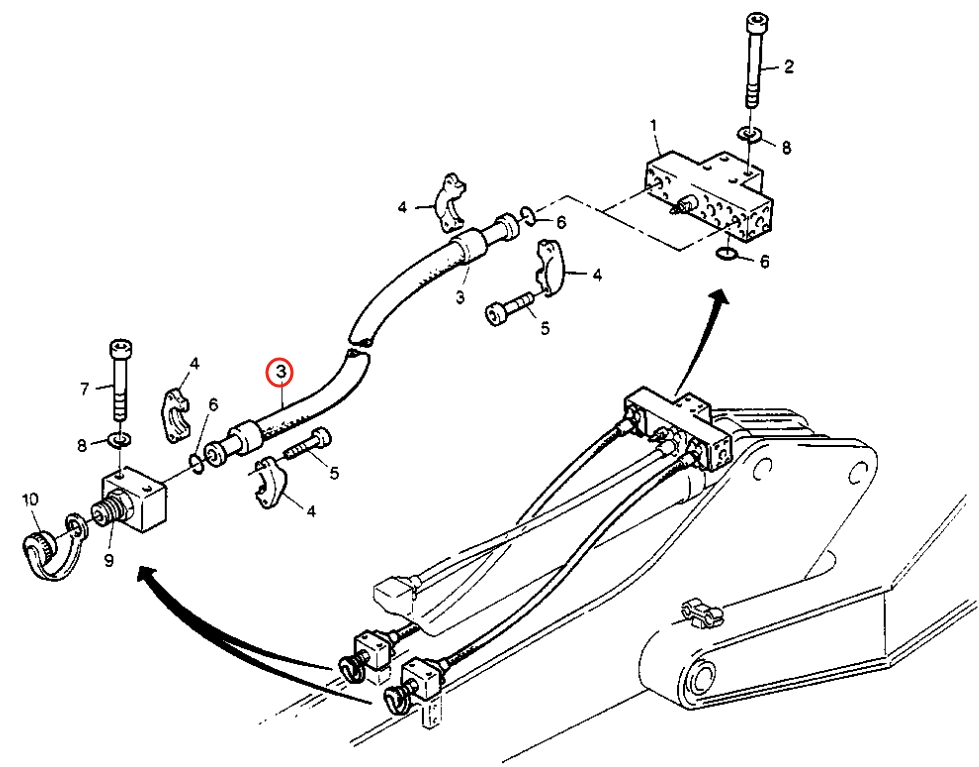

Installation diagram — Pipe No. 3

Locate Pipe No. 3 in the diagram, then confirm part number 8U-4953 before removing the hose.

Caterpillar CAT®211B installation diagram showing hydraulic hose 8U-4953 at Pipe No. 3 — Caterpillar CAT®211BPart 8U-4953 · Pipe No. 3Open full-size diagram

Repair specifications

Part number: 8U-4953
Diagram pipe number: 3
Installation route: 铲斗油缸分流器阀~快换接头
Hose specification: DN19;4SP-12;35Mpa
Finished length: 800 mm
Working pressure: 35 MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 3

8U-6472

Installation route: 大臂(前段)~大臂(后段)

Length: 918 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 1

8U-6204

Installation route: 大臂(前段)~大臂(后段)

Length: 960 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
