Individual hose record
2V-9299 Hose Repair Specifications
Excavator · Caterpillar · CAT®235D · Attachments – Lock Valve
Finished length1,995 mm
Locate this hose

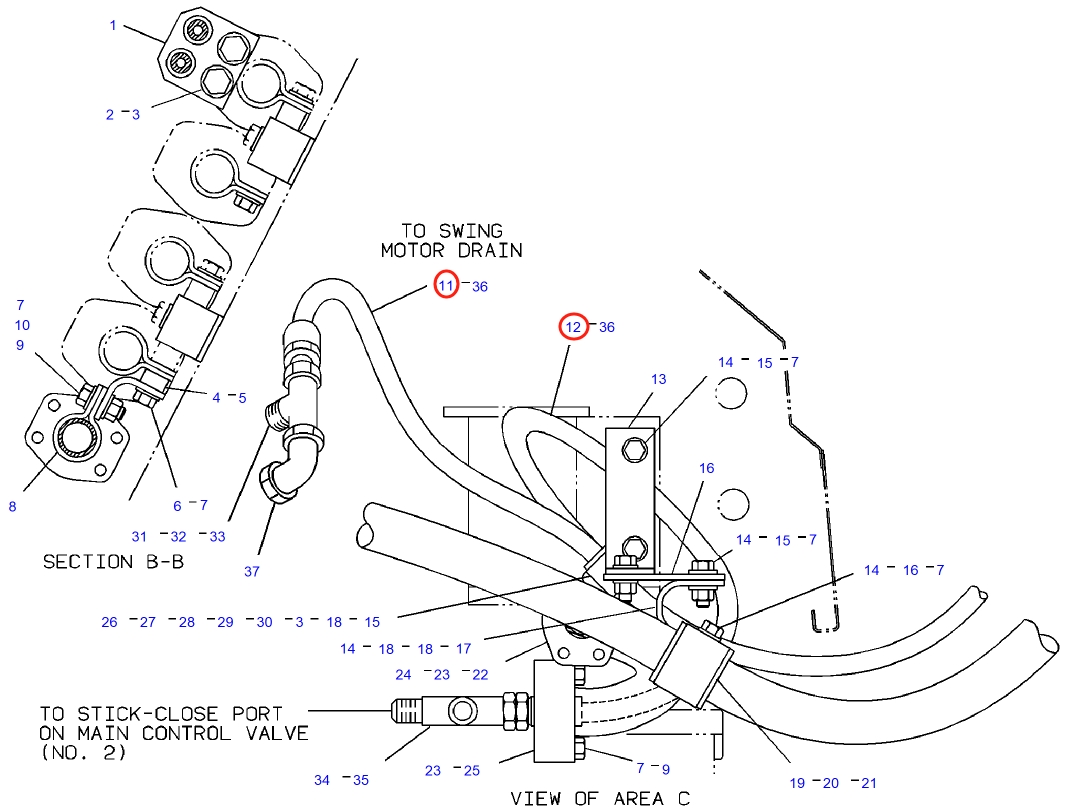

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number 2V-9299 before removing the hose.
Repair specifications
- Part number
- 2V-9299
- Diagram pipe number
- 11
- Installation route
- 安全阀(回转马达上)~大臂(后段)
- Hose specification
- DN10;4SP-6;28Mpa
- Finished length
- 1,995 mm
- Working pressure
- 28 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Quantity
- 1
