Individual hose record

9190272 Hose Repair Specifications

Excavator · Hitachi · ZX200F · Swivel Joint

Finished length1,850 mm

Locate this hose

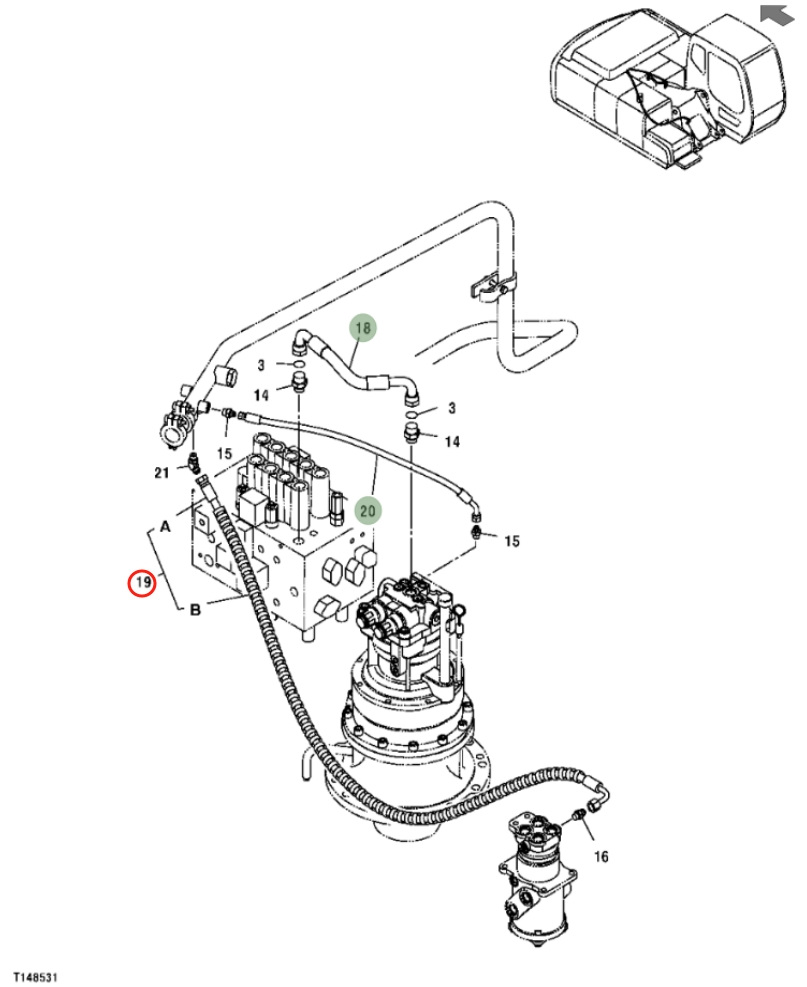

Installation diagram — Pipe No. 19

Locate Pipe No. 19 in the diagram, then confirm part number 9190272 before removing the hose.

Hitachi ZX200F installation diagram showing hydraulic hose 9190272 at Pipe No. 19 — Hitachi ZX200FPart 9190272 · Pipe No. 19Open full-size diagram

Repair specifications

Part number: 9190272
Diagram pipe number: 19
Installation route: 回转接头~回油铁管(液压油箱)
Hose specification: DN13;2SN-08;27.5MPa
Finished length: 1,850 mm
Working pressure: 27.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 19A

4429426

Installation route: 回转接头~回油铁管(液压油箱)

Length: 1,850 mm
Specification: DN13;2SN-08;27.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 30

4427113

Installation route: 回转接头~电磁阀

Length: 1,500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 45°美制内螺纹74°内锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
