Individual hose record

KHJ2083 Hose Repair Specifications

Excavator · Case · CX225SR · Pedal

Finished length3,500 mm

Locate this hose

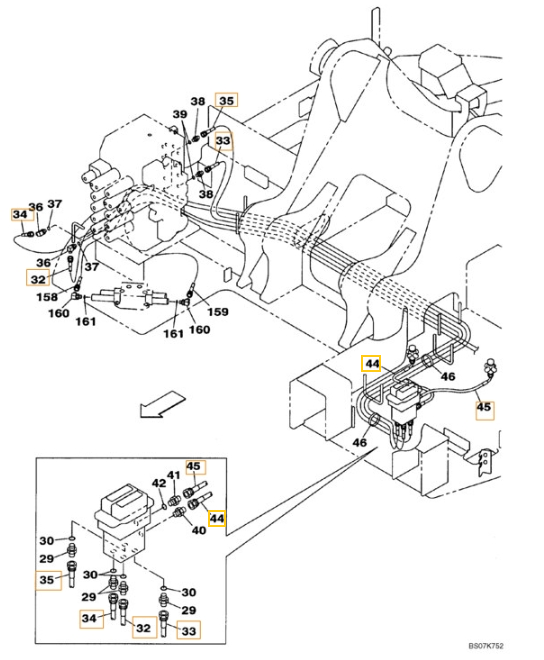

Installation diagram — Pipe No. 34

Locate Pipe No. 34 in the diagram, then confirm part number KHJ2083 before removing the hose.

Part number: KHJ2083
Diagram pipe number: 34
Installation route: 行走踏板~分配阀前
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 3,500 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 65

Installation route: 行走踏板~破碎器踏板

Length: 380 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 33

Installation route: 行走踏板~分配阀后

Length: 2,750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 35

Installation route: 行走踏板~分配阀后

Length: 620 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

For reference only. Confirm the actual hose before fabrication.
