Individual hose record
DS20531212 Hose Repair Specifications
Excavator · Doosan · DX63-3 · Hydraulic Tank
Finished length2,570 mm
Locate this hose

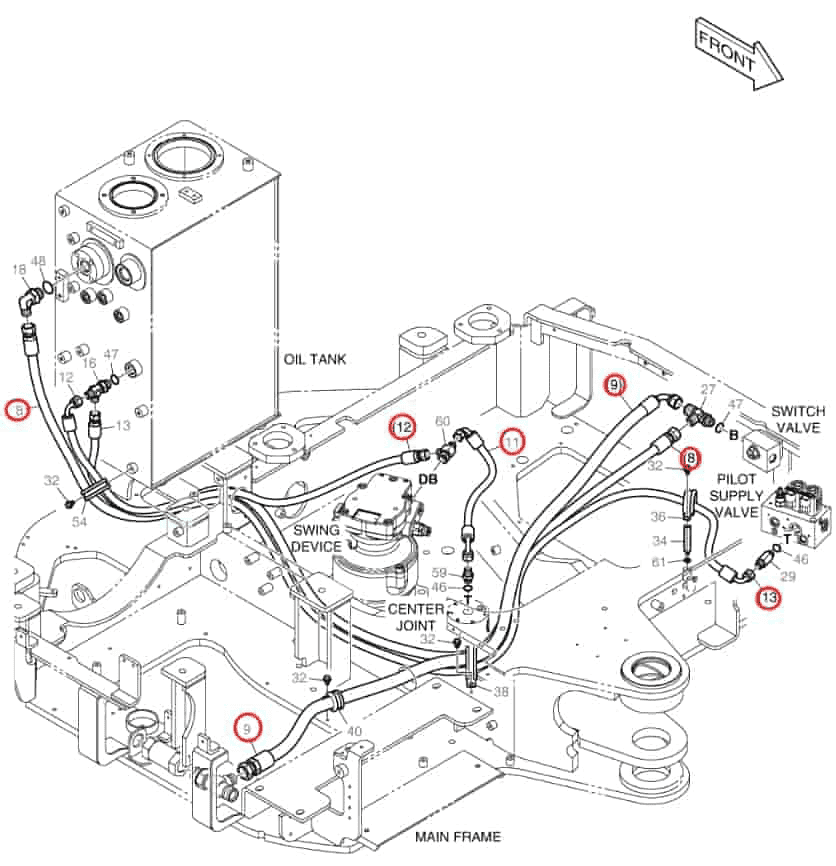

Installation diagram — Pipe No. 8
Locate Pipe No. 8 in the diagram, then confirm part number DS20531212 before removing the hose.
Repair specifications
- Part number
- DS20531212
- Diagram pipe number
- 8
- Installation route
- 液压油箱~开关阀B口
- Hose specification
- DN13;1SN-08;16MPa
- Finished length
- 2,570 mm
- Working pressure
- 16 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
