Individual hose record

KRA1536 Hose Repair Specifications

Excavator · Case · CX210B SL · Swivel Joint

Finished length2,120 mm

Locate this hose

Installation diagram — Pipe No. 3

Locate Pipe No. 3 in the diagram, then confirm part number KRA1536 before removing the hose.

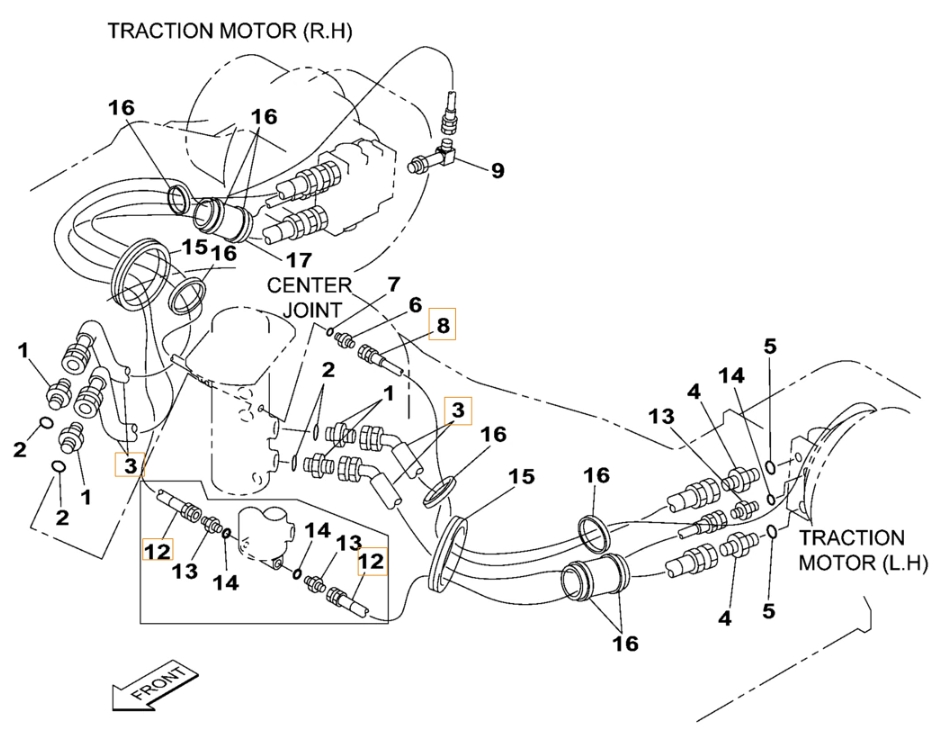

Case CX210B SL installation diagram showing hydraulic hose KRA1536 at Pipe No. 3
Case CX210B SLPart KRA1536 · Pipe No. 3Open full-size diagram

Repair specifications

Part number
KRA1536
Diagram pipe number
3
Installation route
Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
Hose specification
DN19;4SP-12;35MPa
Finished length
2,120 mm
Working pressure
35 MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
Quantity
4
