Individual hose record

8U-0325 Hose Repair Specifications

Excavator · Caterpillar · CAT®213B · Control Lever

Finished length645 mm

Locate this hose

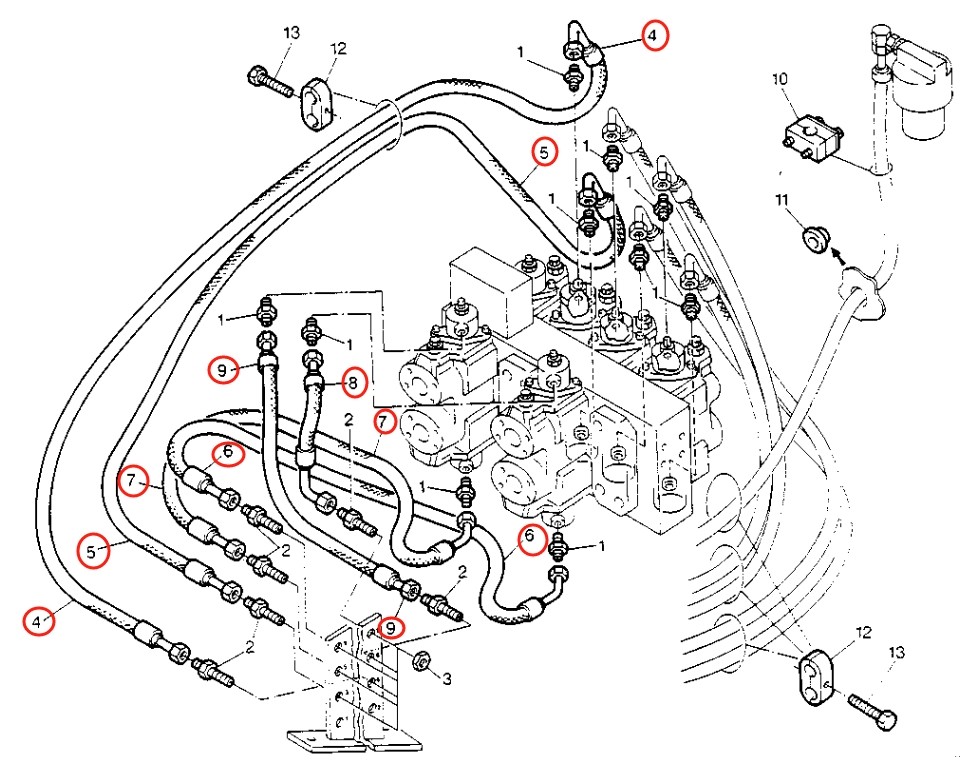

Installation diagram — Pipe No. 9

Locate Pipe No. 9 in the diagram, then confirm part number 8U-0325 before removing the hose.

Part number: 8U-0325
Diagram pipe number: 9
Installation route: 中转接头~分配阀上
Hose specification: DN8;-5;17.5Mpa
Finished length: 645 mm
Working pressure: 17.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 5

Installation route: 右手柄~中转接头

Length: 1,506 mm
Specification: DN8;-5;17.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 6

Installation route: 右手柄~进回油阀

Length: 847 mm
Specification: DN8;-5;17.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 6

Installation route: 左手柄~进回油阀

Length: 847 mm
Specification: DN8;-5;17.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 5

Installation route: 左手柄~中转接头

Length: 2,000 mm
Specification: DN8;-5;17.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
