Individual hose record

DS2013337 Hose Preview

Excavator · Doosan · DX140LCR · Attachments – Breaker

Finished length1,900 mm

Repair specifications

Part number
DS2013337
Diagram pipe number
3
Installation route
Transition valve block (breaker) → breaker filter — terminology review requiredOriginal Chinese: 过渡阀块(破碎器)~破碎器过滤器
Hose specification
DN19;1SN-12;10.5MPa
Finished length
1,900 mm
Working pressure
10.5 MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Quantity
1

Manual diagrams

Installation and Exploded Views

A red marker identifies a reviewed hose location.

Installation diagram

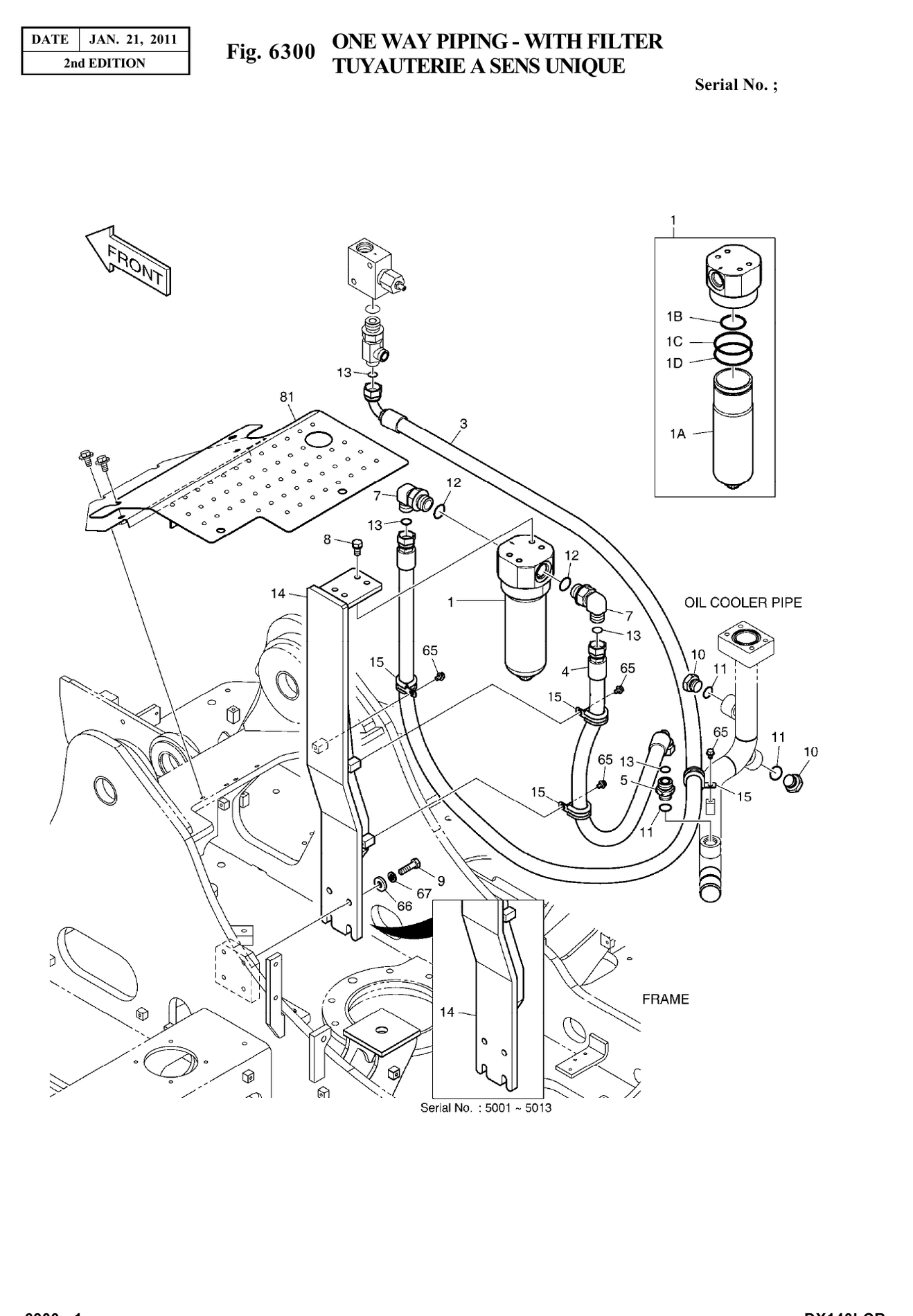

Installation diagramUse this diagram to help identify the hose. Confirm the exact position and pipe number on the machine.Doosan DX140LCR Excavator Parts ManualManual page 560 · Printed page 6300-1 · Fig. 6300View full-size
Installation diagram

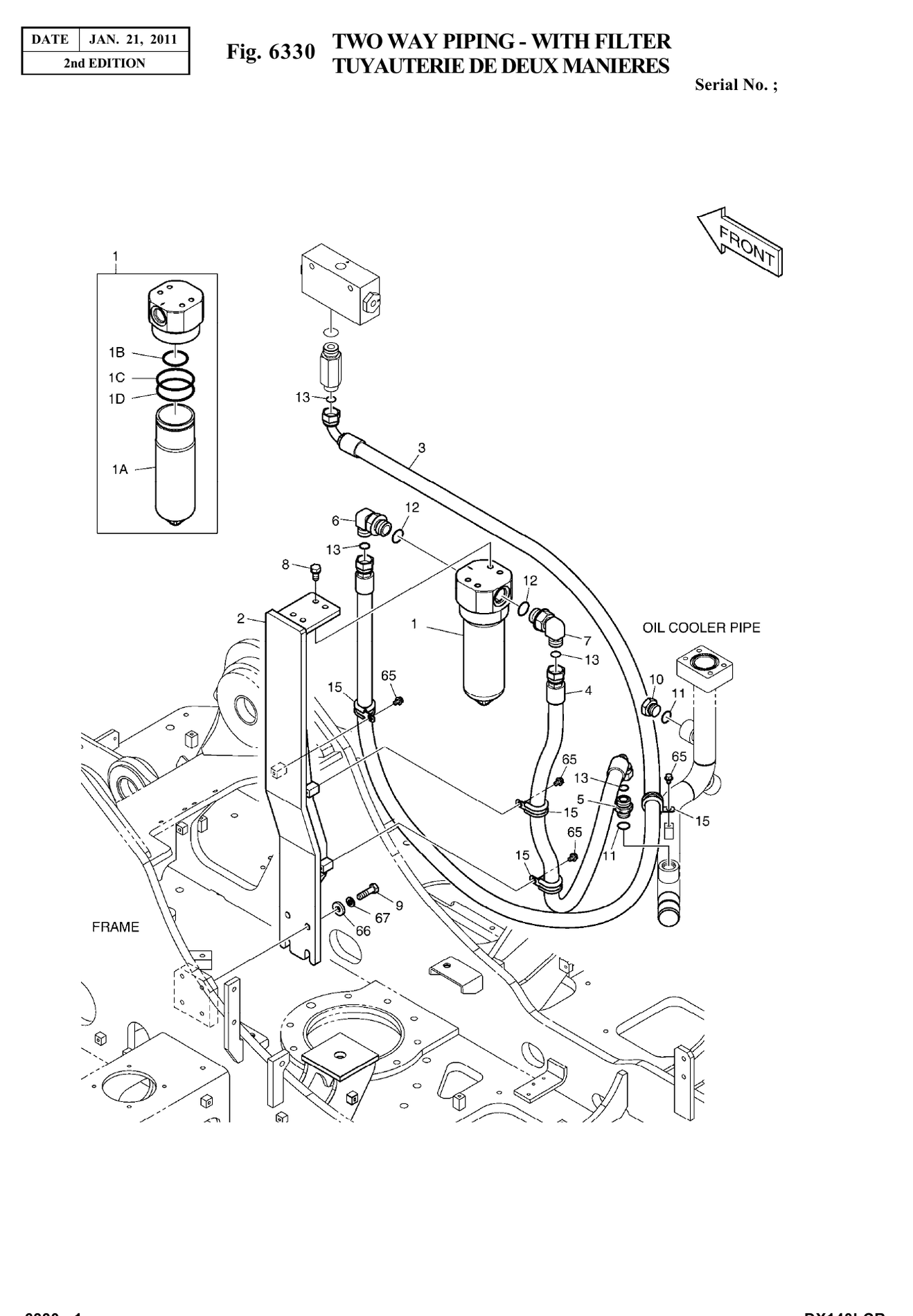

Installation diagramUse this diagram to help identify the hose. Confirm the exact position and pipe number on the machine.Doosan DX140LCR Excavator Parts ManualManual page 572 · Printed page 6330-1 · Fig. 6330View full-size

For reference only. Confirm the actual hose before fabrication.
