Individual hose record

4676586 Hose Repair Specifications

Excavator · Hitachi · ZX210LC-5G · Boom Assembly

Finished length880 mm

Locate this hose

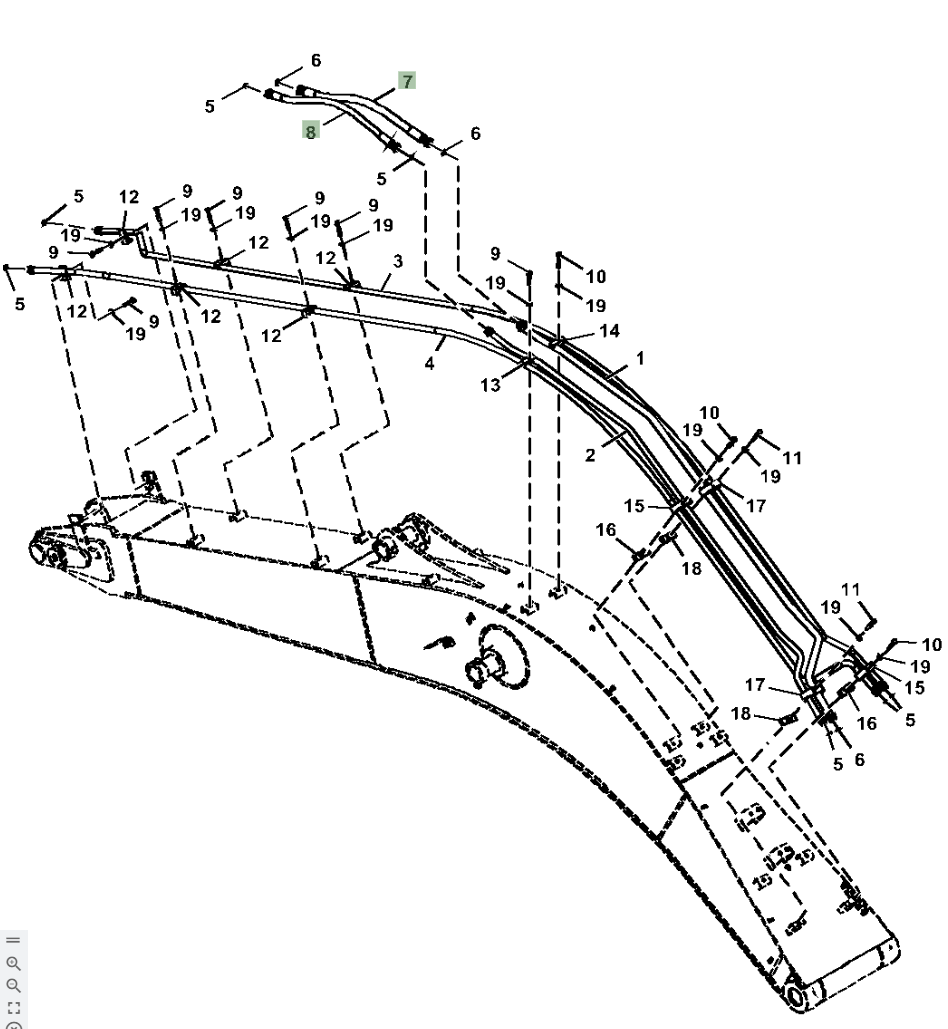

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 4676586 before removing the hose.

Hitachi ZX210LC-5G installation diagram showing hydraulic hose 4676586 at Pipe No. 8 — **Hitachi ZX210LC-5G**Part 4676586 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: 4676586
Diagram pipe number: 8
Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左
Hose specification: DN19;4SH-12;42MPa
Finished length: 880 mm
Working pressure: 42 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1
