Individual hose record

121-6318 Hose Repair Specifications

Excavator · Caterpillar · CAT®318B N · Attachments – Lock Valve

Finished length640 mm

Locate this hose

Installation diagram — Pipe No. 13

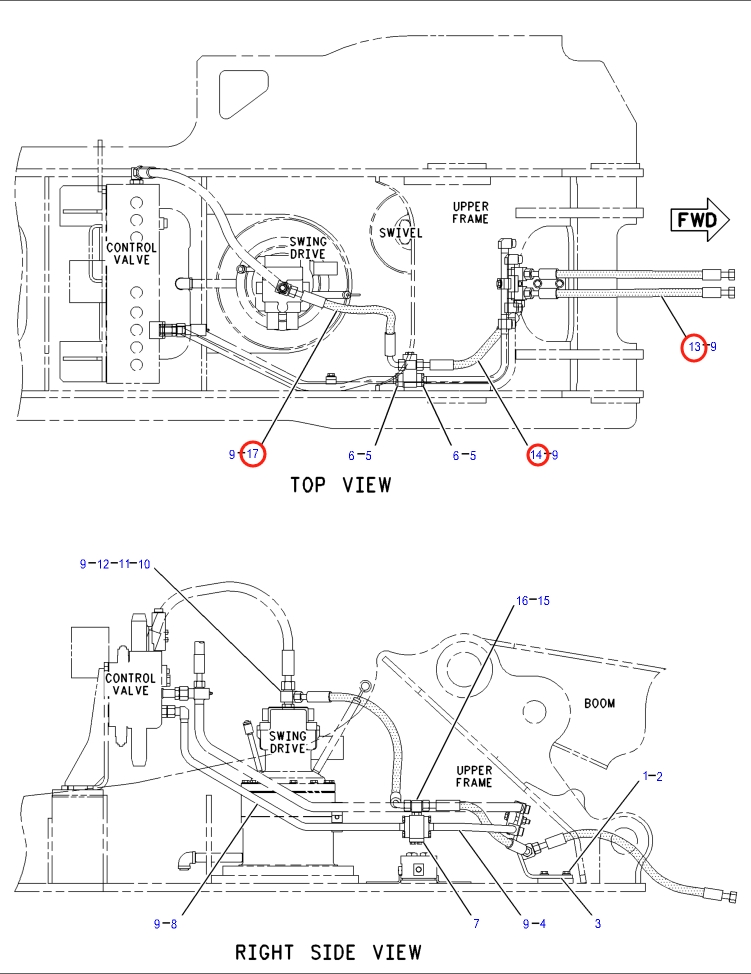

Locate Pipe No. 13 in the diagram, then confirm part number 121-6318 before removing the hose.

Caterpillar CAT®318B N installation diagram showing hydraulic hose 121-6318 at Pipe No. 13
Caterpillar CAT®318B NPart 121-6318 · Pipe No. 13Open full-size diagram

Repair specifications

Part number
121-6318
Diagram pipe number
13
Installation route
大臂油缸锁止阀~过渡接头(大臂油缸锁止阀)
Hose specification
DN16;1SN-10;10.5Mpa
Finished length
640 mm
Working pressure
10.5 MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity
2

Same system

Related Hoses

Diagram Pipe No. 6

102-8280

Installation route: 过渡接头(大臂油缸锁止阀)~分配阀

Length
1,560 mm
Specification
DN10;-6;10.3Mpa
Left fitting
美制内螺纹37°锥
Right fitting
美制内螺纹37°锥
View full repair specifications

Diagram Pipe No. 1

4I-6242

Installation route: 过渡接头(大臂油缸锁止阀)~蓄能器电磁阀

Length
2,950 mm
Specification
DN10;-6;10.3Mpa
Left fitting
美制内螺纹37°锥
Right fitting
美制内螺纹37°锥
View full repair specifications

For reference only. Confirm the actual hose before fabrication.
