Individual hose record

7V-7376 Hose Repair Specifications

Excavator · Caterpillar · CAT®219D · Boom Assembly

Finished length411 mm

Locate this hose

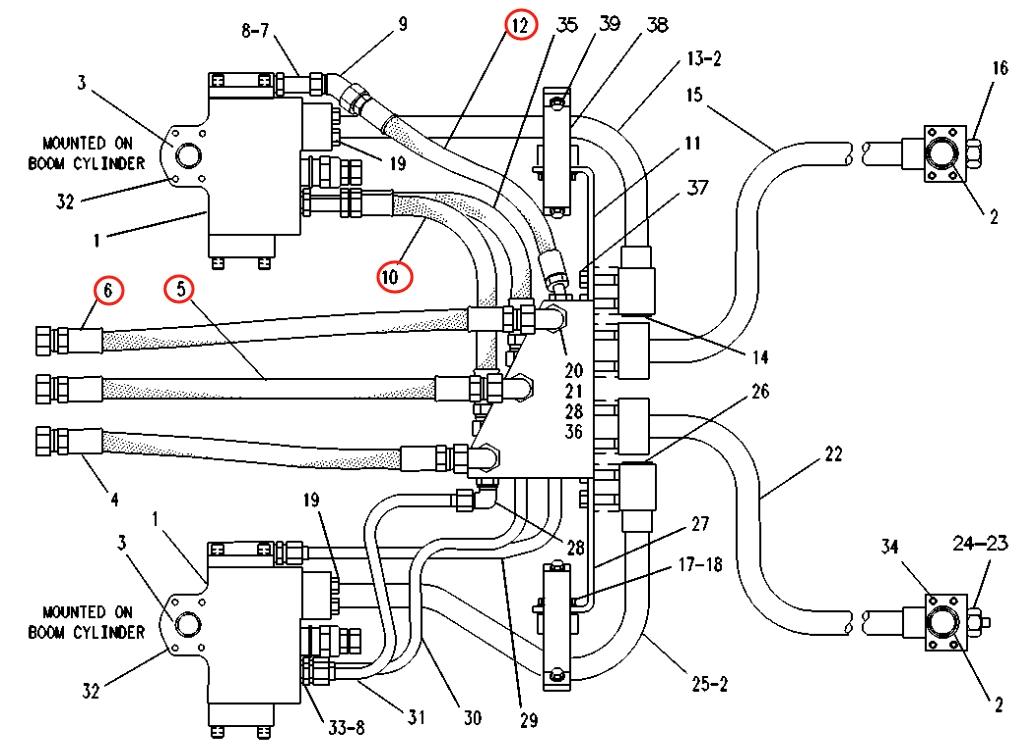

Installation diagram — Pipe No. 10

Locate Pipe No. 10 in the diagram, then confirm part number 7V-7376 before removing the hose.

Caterpillar CAT®219D installation diagram showing hydraulic hose 7V-7376 at Pipe No. 10 — Caterpillar CAT®219DPart 7V-7376 · Pipe No. 10Open full-size diagram

Repair specifications

Part number: 7V-7376
Diagram pipe number: 10
Installation route: 大臂油缸(带锁止阀规格)
Hose specification: DN13;1SN-8;14Mpa
Finished length: 411 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 5

8V-7771

Installation route: 大臂油缸(带锁止阀规格)

Length: 642 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 8

6A-7720

Installation route: 大臂油缸

Length: 945 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 4

8V-7772

Installation route: 大臂油缸(带锁止阀规格)

Length: 612 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
