Individual hose record
4639452 Hose Repair Specifications
Excavator · Hitachi · ZX870LC-5A · Swivel Joint
Finished length3,200 mm
Locate this hose

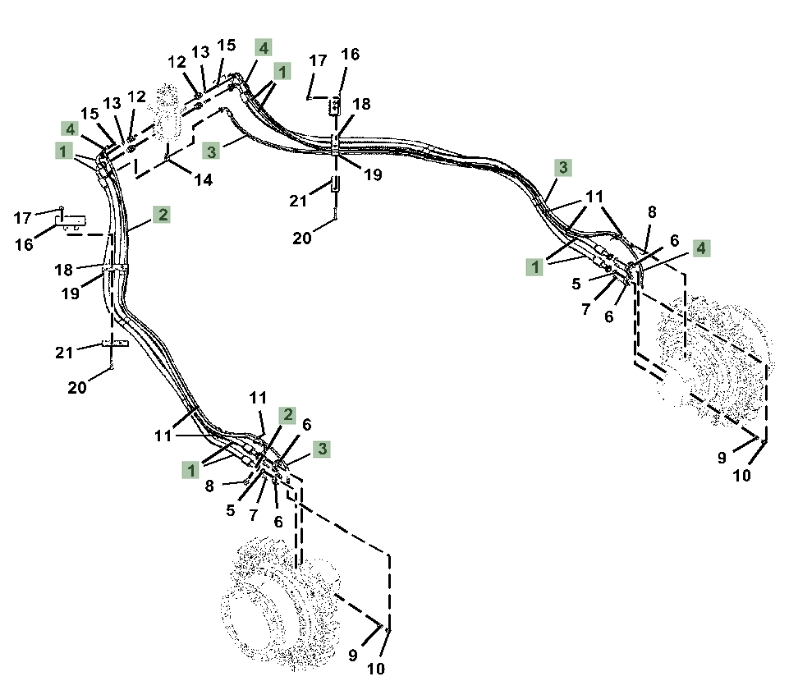

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number 4639452 before removing the hose.
Repair specifications
- Part number
- 4639452
- Diagram pipe number
- 1
- Installation route
- Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Hose specification
- DN25;4SP-16;35Mpa
- Finished length
- 3,200 mm
- Working pressure
- 35 MPa
- Left fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 4
