5W-4915 Hose Repair Specifications

Excavator · Caterpillar · CAT®212 · Swivel Joint

Finished length699 mm

Locate this hose

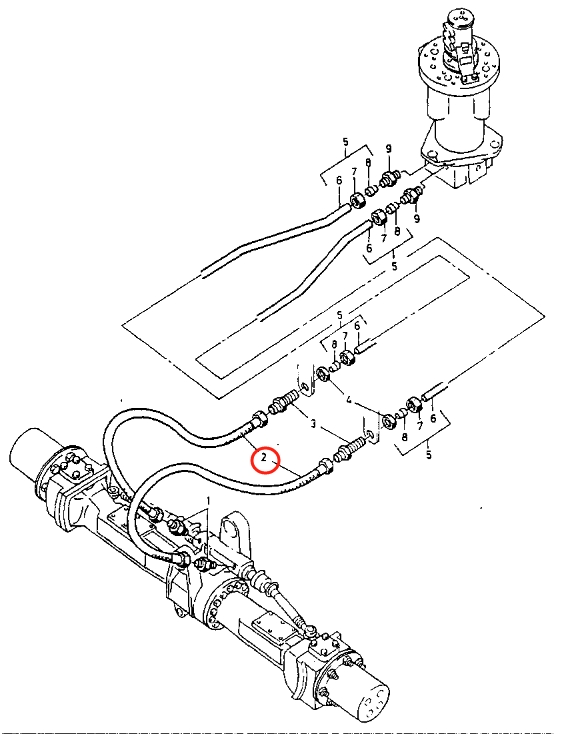

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 5W-4915 before removing the hose.

Caterpillar CAT®212 installation diagram showing hydraulic hose 5W-4915 at Pipe No. 2 — Caterpillar CAT®212Part 5W-4915 · Pipe No. 2Open full-size diagram

Repair specifications

Part number: 5W-4915
Diagram pipe number: 2
Installation route: 回转接头~支腿油缸
Hose specification: DN10;2SN-6;33Mpa
Finished length: 699 mm
Working pressure: 33 MPa
Left fitting: 公制内螺纹24°锥带O形圈-重型
Right fitting: 公制内螺纹24°锥带O形圈-重型
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 8

5W-4904

Installation route: 回转接头~左分配阀

Length: 840 mm
Specification: DN16;6SH-10;42Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 4

5W-1902

Installation route: 回转接头~右支腿油缸

Length: 1,500 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: 公制内螺纹24°锥带O形圈-重型
Right fitting: 公制内螺纹24°锥带O形圈-重型

View full repair specifications

Diagram Pipe No. 4

5W-1902

Installation route: 回转接头~手动阀(连接回转接头)

Length: 1,500 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: 公制内螺纹24°锥带O形圈-重型
Right fitting: 公制内螺纹24°锥带O形圈-重型

View full repair specifications

Diagram Pipe No. 7

5W-4906

Installation route: 回转接头~左分配阀

Length: 690 mm
Specification: DN16;6SH-10;42Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
