440-3112 Hose Repair Specifications

Excavator · Caterpillar · CAT®M315F · Attachments

Finished length1,800 mm

Locate this hose

Installation diagram — Pipe No. 38

Locate Pipe No. 38 in the diagram, then confirm part number 440-3112 before removing the hose.

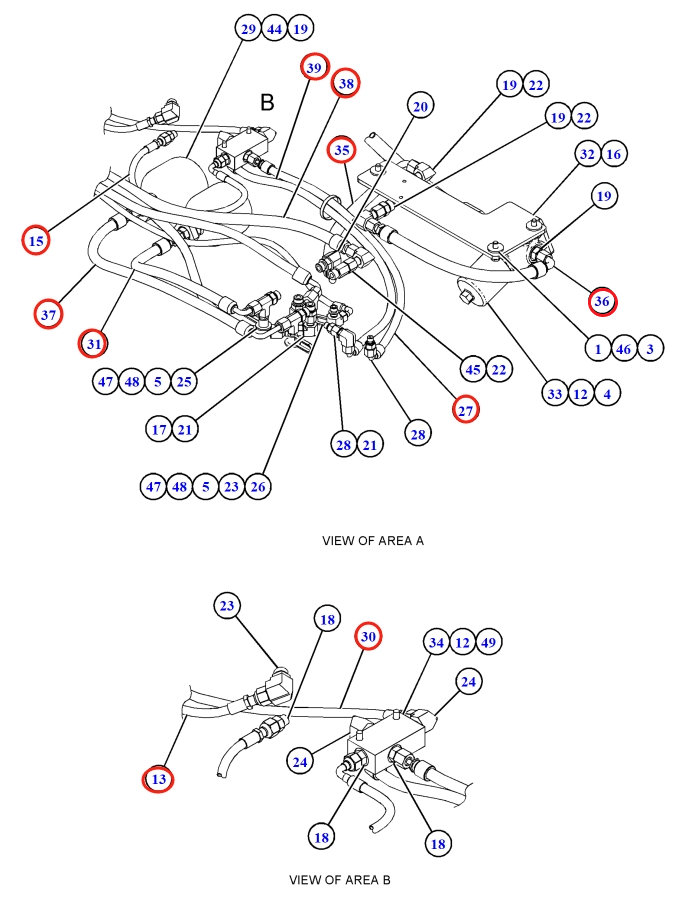

Caterpillar CAT®M315F installation diagram showing hydraulic hose 440-3112 at Pipe No. 38 — **Caterpillar CAT®M315F**Part 440-3112 · Pipe No. 38Open full-size diagram

Repair specifications

Part number: 440-3112
Diagram pipe number: 38
Installation route: 蓄能器(制动器)~
Hose specification: DN13;2SN-8;27.5Mpa
Finished length: 1,800 mm
Working pressure: 27.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 33

466-1189

Installation route: 大臂后段附加装置管

Length: 2,670 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 8

364-1644

Installation route: 大臂辅助管路

Length: 4,500 mm
Specification: DN19;6SH-12;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 17

466-1192

Installation route: 大臂(前段)~大臂(后段)

Length: 4,850 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 13

464-4946

Installation route: 大臂(前段)~大臂(后段)

Length: 2,530 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 8

435-4128

Installation route: 大臂辅助管路

Length: 3,060 mm
Specification: DN19;6SH-12;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 3

185-6791

Installation route: 大臂辅助管路

Length: 3,760 mm
Specification: DN19;6SH-12;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 4

141-9888

Installation route: 风扇泵~液压油箱

Length: 2,080 mm
Specification: DN13;2SN-8;27.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 32

466-1188

Installation route: 大臂后段附加装置管

Length: 2,850 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
