8U-0109 Hose Repair Specifications

Excavator · Caterpillar · CAT®224B · Hydraulic Pump

Finished length1,386 mm

Locate this hose

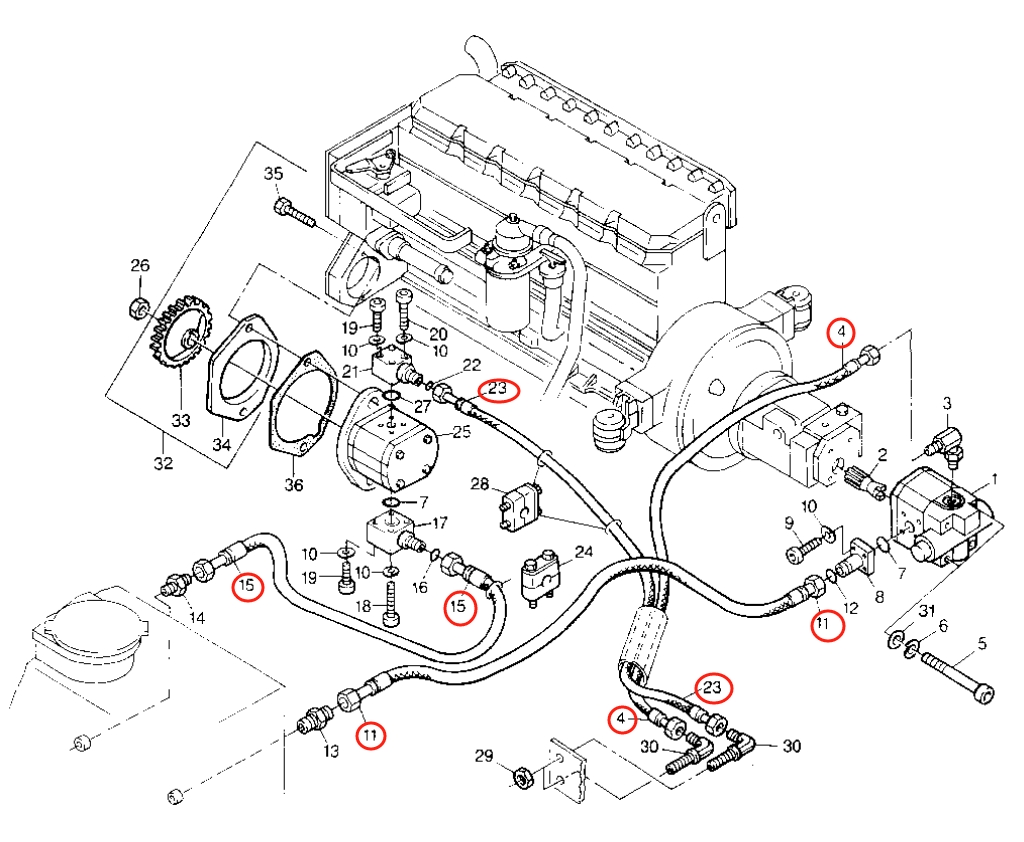

Installation diagram — Pipe No. 4

Locate Pipe No. 4 in the diagram, then confirm part number 8U-0109 before removing the hose.

Part number: 8U-0109
Diagram pipe number: 4
Installation route: 转向泵~过渡接头(连接制动泵)
Hose specification: DN10;2SN-6;33Mpa
Finished length: 1,386 mm
Working pressure: 33 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 18

Installation route: 液压泵后~液压油过滤器

Length: 847 mm
Specification: DN8;-5;17.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 15

Installation route: 液压泵~(连接液压泵)

Length: 541 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 9

Installation route: 液压泵前~液压油箱

Length: 402 mm
Specification: DN19;2SN-12;21.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
