Individual hose record
4129123 Hose Repair Specifications
Excavator · Hitachi · ZX75US-3 · Grease Lines
Finished length600 mm
Locate this hose

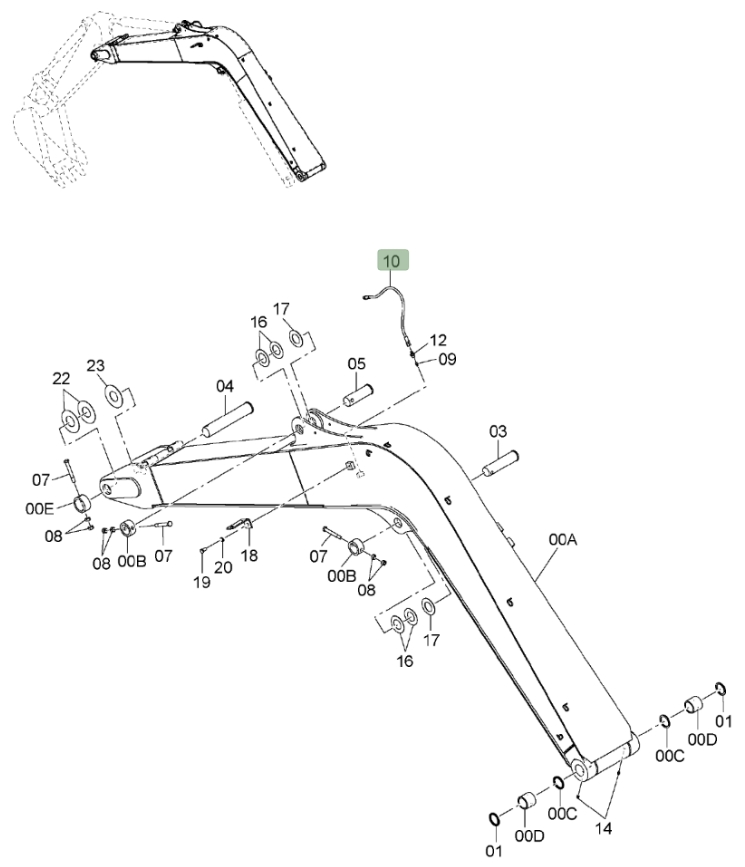

Installation diagram — Pipe No. 10
Locate Pipe No. 10 in the diagram, then confirm part number 4129123 before removing the hose.
Repair specifications
- Part number
- 4129123
- Diagram pipe number
- 10
- Installation route
- Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 600 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
