Individual hose record

6A-7864 Hose Repair Specifications

Excavator · Caterpillar · CAT®219D · Swivel Joint

Finished length889 mm

Locate this hose

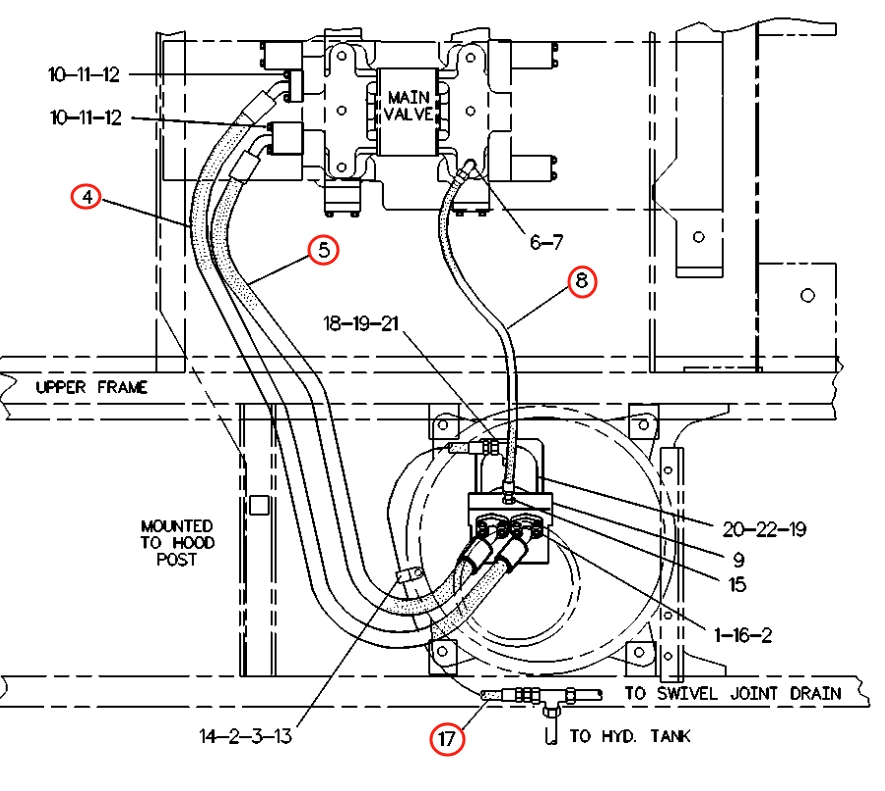

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 6A-7864 before removing the hose.

Caterpillar CAT®219D installation diagram showing hydraulic hose 6A-7864 at Pipe No. 8 — Caterpillar CAT®219DPart 6A-7864 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: 6A-7864
Diagram pipe number: 8
Installation route: 回转接头~分配阀
Hose specification: DN19;1SN-12;8.7Mpa
Finished length: 889 mm
Working pressure: 8.7 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

For reference only. Confirm the actual hose before fabrication.
