Individual hose record
4453410 Hose Repair Specifications
Excavator · Hitachi · EX17U · Control Lever
Finished length2,790 mm
Locate this hose

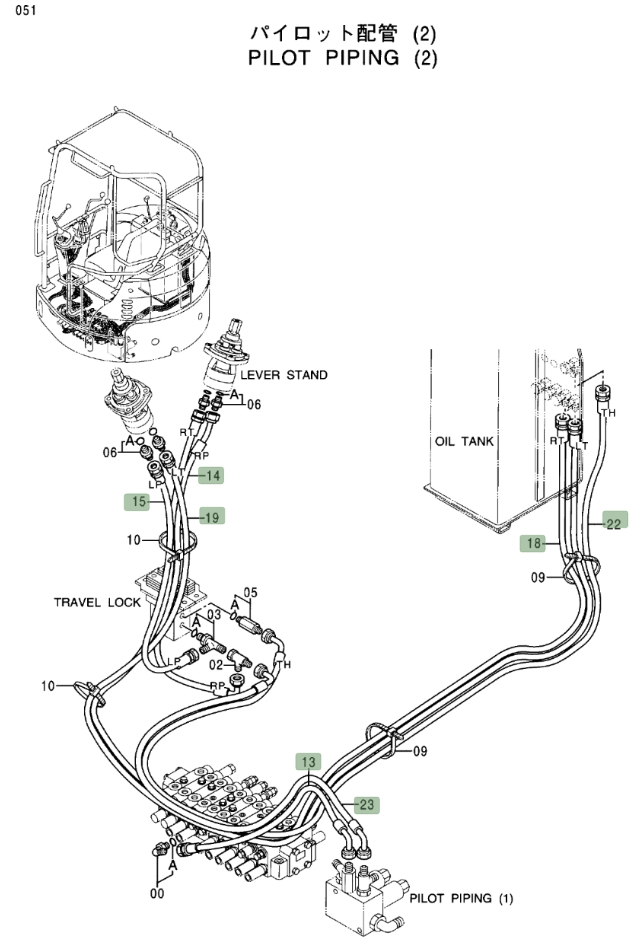

Installation diagram — Pipe No. 18
Locate Pipe No. 18 in the diagram, then confirm part number 4453410 before removing the hose.
Repair specifications
- Part number
- 4453410
- Diagram pipe number
- 18
- Installation route
- 右手柄~液压油箱
- Hose specification
- DN5;1SN-03;7Mpa
- Finished length
- 2,790 mm
- Working pressure
- 7 MPa
- Left fitting
- 英制内螺纹30°外锥
- Right fitting
- 英制内螺纹30°外锥
- Quantity
- 1
