Individual hose record

4196297 Hose Repair Specifications

Excavator · Hitachi · EX160WD · Boom Assembly

Finished length1,300 mm

Locate this hose

Installation diagram — Pipe No. 9

Locate Pipe No. 9 in the diagram, then confirm part number 4196297 before removing the hose.

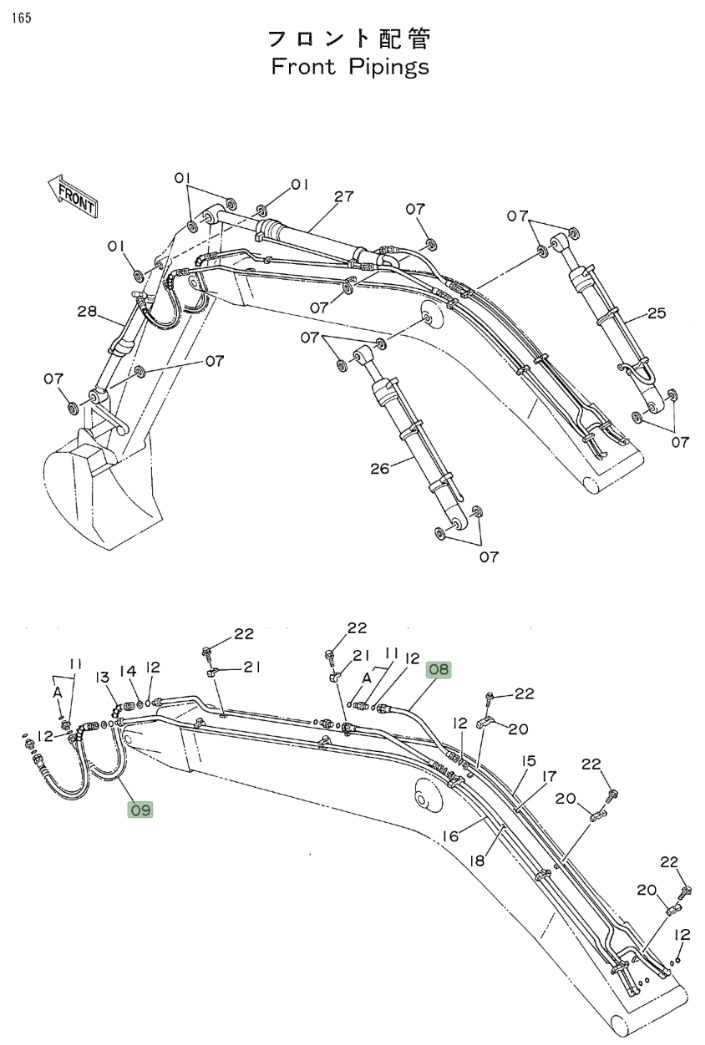

Hitachi EX160WD installation diagram showing hydraulic hose 4196297 at Pipe No. 9
Hitachi EX160WDPart 4196297 · Pipe No. 9Open full-size diagram

Repair specifications

Part number
4196297
Diagram pipe number
9
Installation route
Bucket cylinderOriginal Chinese: 铲斗油缸
Hose specification
DN19;4SP-12;38Mpa
Finished length
1,300 mm
Working pressure
38 MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity
2
