Individual hose record
568-7934 Hose Repair Specifications
Excavator · Caterpillar · CAT®315 GC · Attachments – Breaker
Finished length690 mm
Locate this hose

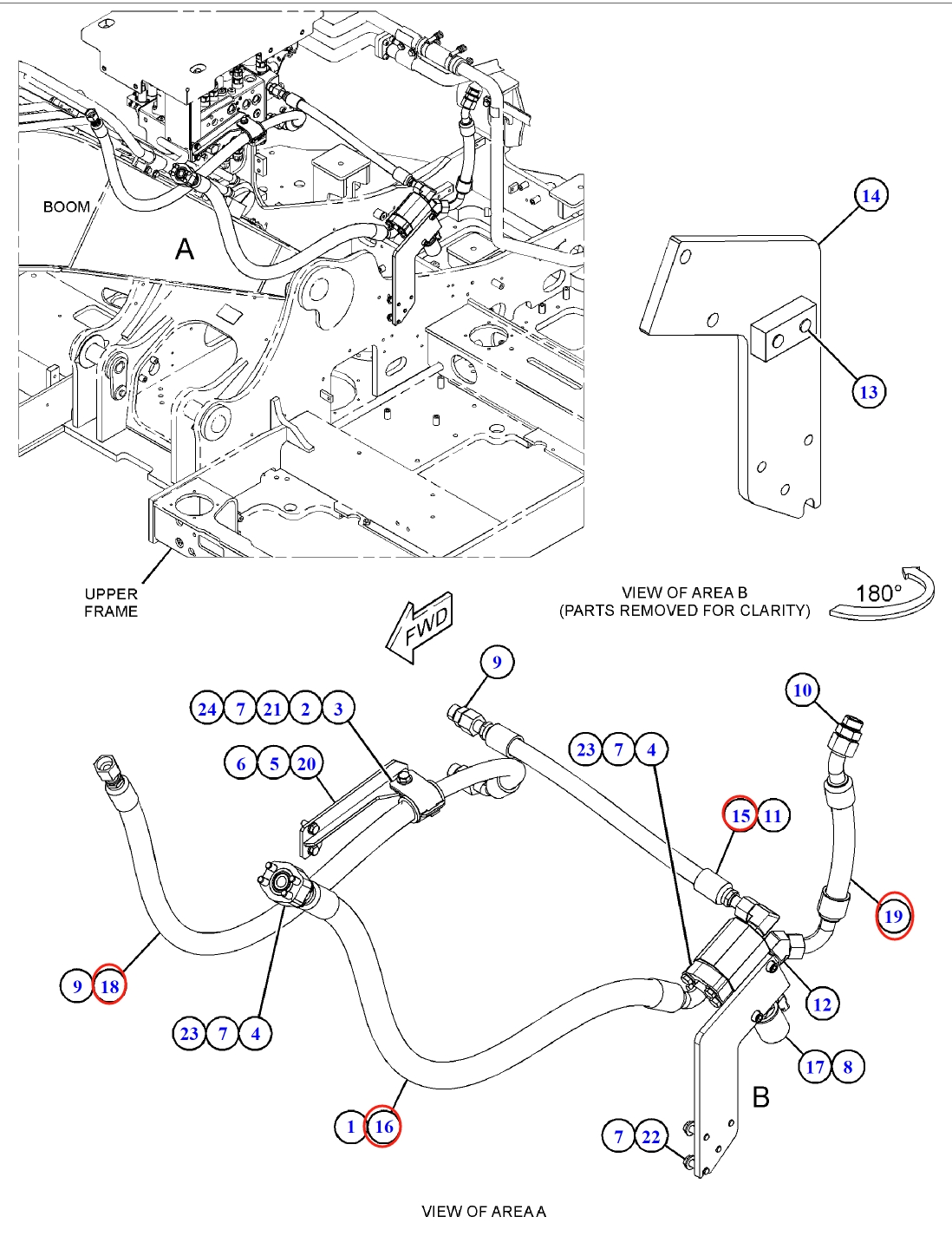

Installation diagram — Pipe No. 15
Locate Pipe No. 15 in the diagram, then confirm part number 568-7934 before removing the hose.
Repair specifications
- Part number
- 568-7934
- Diagram pipe number
- 15
- Installation route
- 破碎器电磁阀(连接分配阀)~分配阀
- Hose specification
- DN19;6SH-12;42Mpa
- Finished length
- 690 mm
- Working pressure
- 42 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
