Individual hose record
KHJ2106 Hose Repair Specifications
Excavator · Case · CX130C W/B · Hydraulic Tank
Finished length1,600 mm
Locate this hose

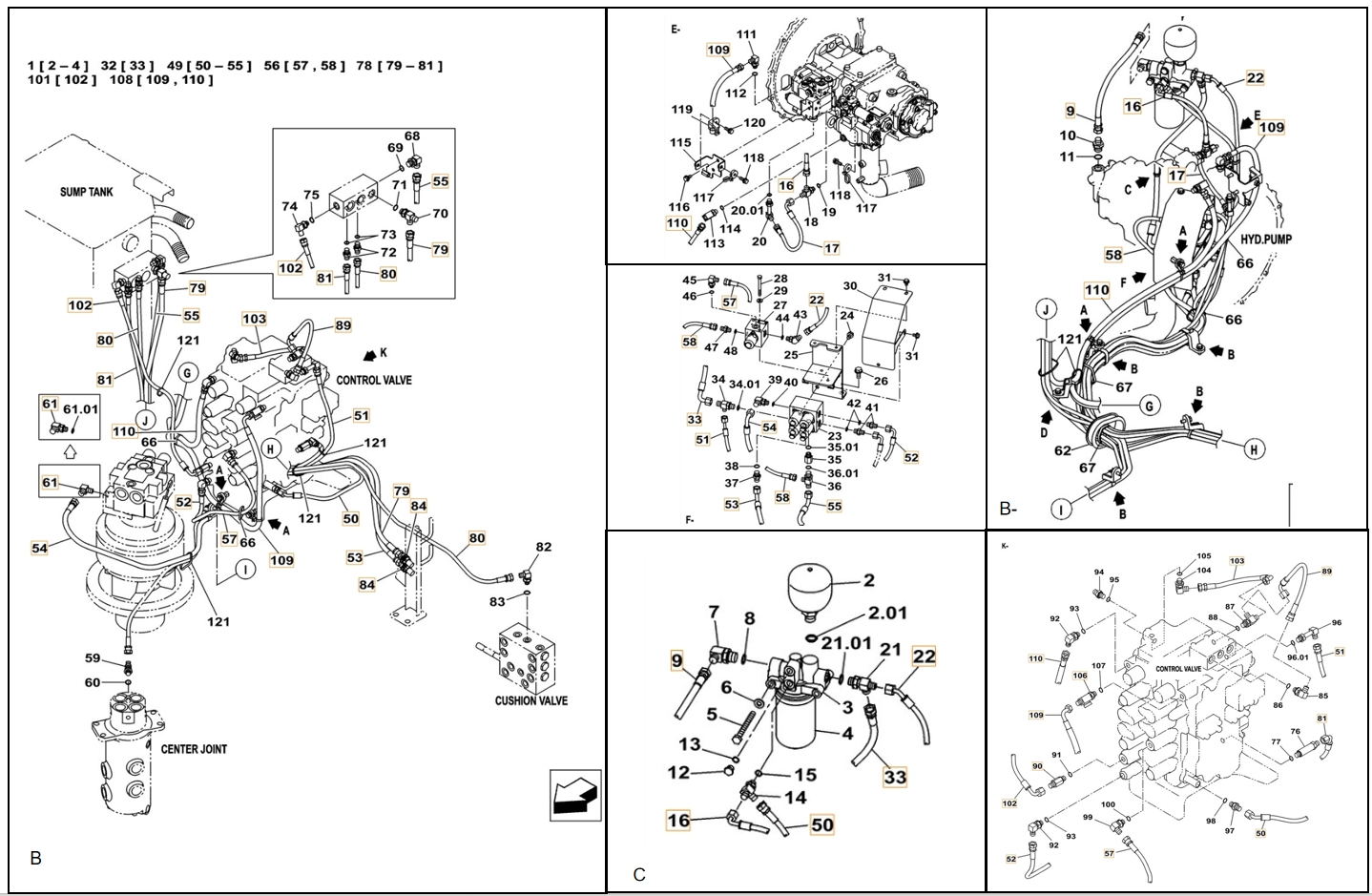

Installation diagram — Pipe No. 55
Locate Pipe No. 55 in the diagram, then confirm part number KHJ2106 before removing the hose.
Repair specifications
- Part number
- KHJ2106
- Diagram pipe number
- 55
- Installation route
- 液压油箱~电磁阀
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 1,600 mm
- Working pressure
- 18 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
