Individual hose record
4I-6003 Hose Repair Specifications
Excavator · Caterpillar · CAT®318E L · Pedal
Finished length2,650 mm
Locate this hose

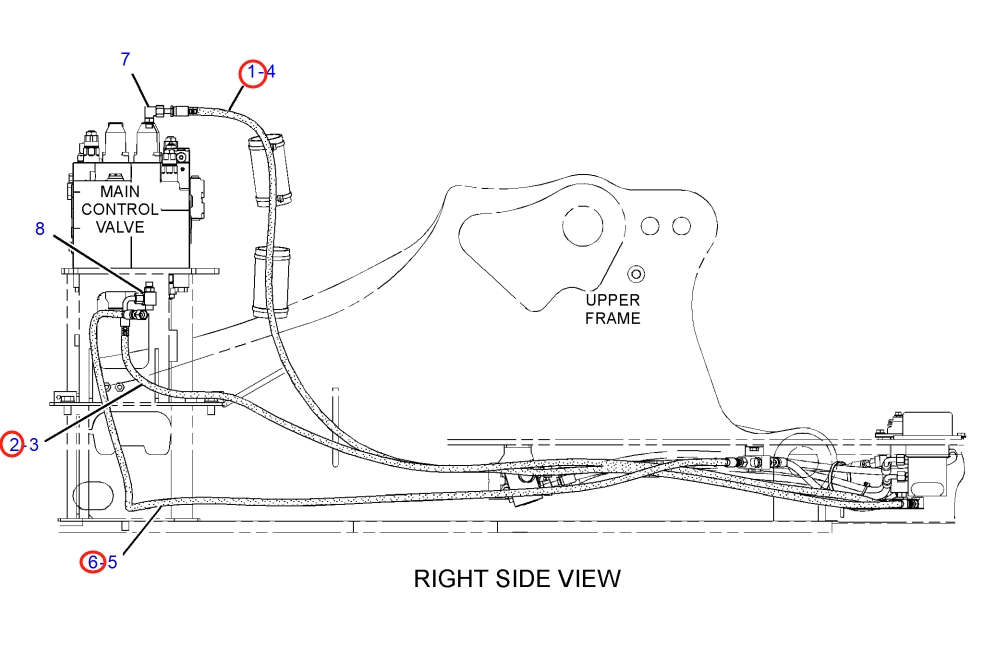

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number 4I-6003 before removing the hose.
Repair specifications
- Part number
- 4I-6003
- Diagram pipe number
- 1
- Installation route
- 分节油缸踏板~分配阀上
- Hose specification
- DN10;1SN-6;10.4Mpa
- Finished length
- 2,650 mm
- Working pressure
- 10.4 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
