3V-4804 Hose Repair Specifications

Excavator · Caterpillar · CAT®245 · Hydraulic Tank

Finished length1,615 mm

Locate this hose

Installation diagram — Pipe No. 30

Locate Pipe No. 30 in the diagram, then confirm part number 3V-4804 before removing the hose.

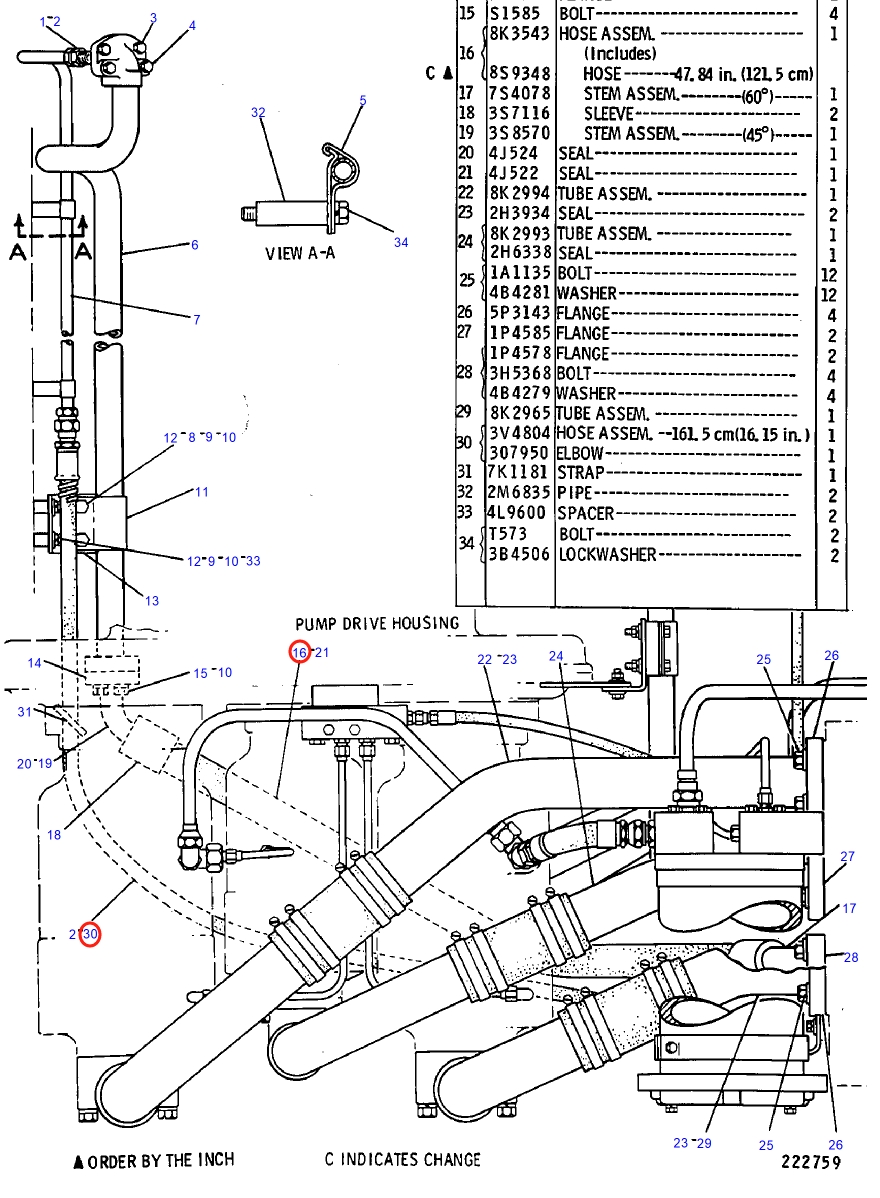

Caterpillar CAT®245 installation diagram showing hydraulic hose 3V-4804 at Pipe No. 30 — Caterpillar CAT®245Part 3V-4804 · Pipe No. 30Open full-size diagram

Repair specifications

Part number: 3V-4804
Diagram pipe number: 30
Installation route: 液压油箱~铁管(液压泵前)
Hose specification: DN19;1SN-12;8.7Mpa
Finished length: 1,615 mm
Working pressure: 8.7 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

For reference only. Confirm the actual hose before fabrication.
