Individual hose record
8V-6563 Hose Repair Specifications
Excavator · Caterpillar · CAT®245B · Boom Assembly
Finished length2,025 mm
Locate this hose

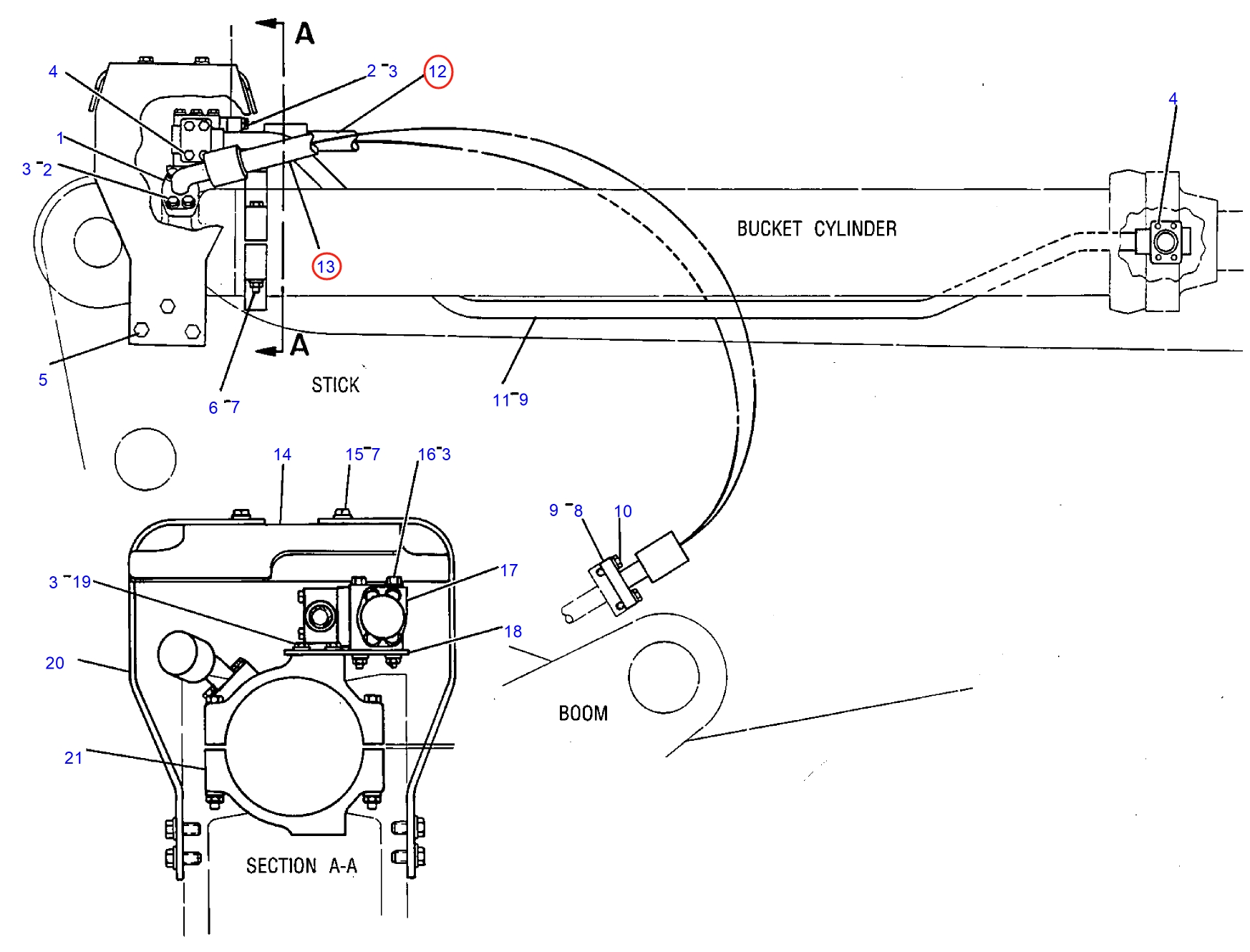

Installation diagram — Pipe No. 12
Locate Pipe No. 12 in the diagram, then confirm part number 8V-6563 before removing the hose.
Repair specifications
- Part number
- 8V-6563
- Diagram pipe number
- 12
- Installation route
- 铲斗油缸左
- Hose specification
- DN32;4SP-20;35Mpa
- Finished length
- 2,025 mm
- Working pressure
- 35 MPa
- Left fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
