Individual hose record
4332809 Hose Repair Specifications
Excavator · Hitachi · EX750-5 · Swivel Joint
Finished length1,850 mm
Locate this hose

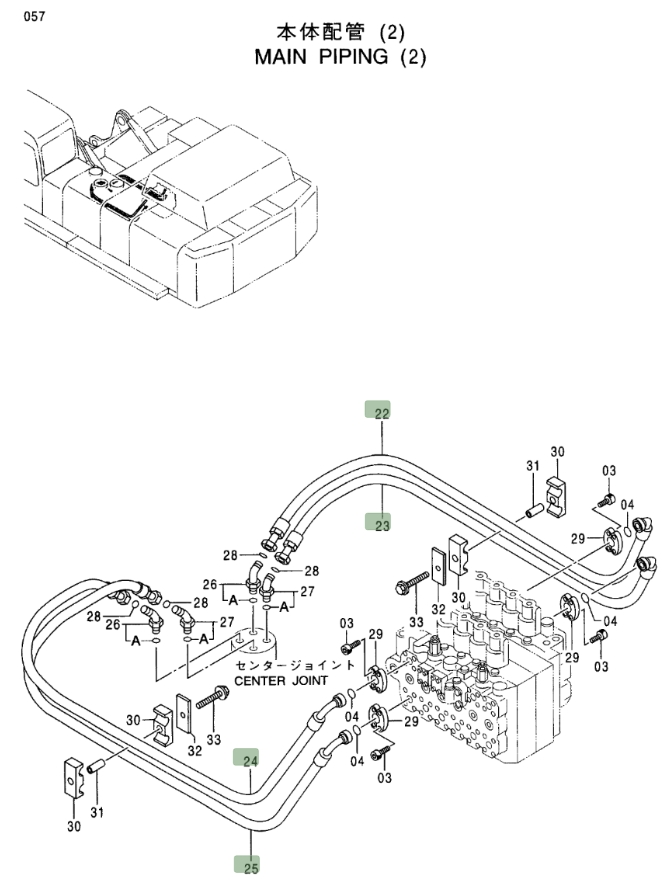

Installation diagram — Pipe No. 25
Locate Pipe No. 25 in the diagram, then confirm part number 4332809 before removing the hose.
Repair specifications
- Part number
- 4332809
- Diagram pipe number
- 25
- Installation route
- 回转接头~分配阀左下
- Hose specification
- DN25;4SP-16;32.5MPa
- Finished length
- 1,850 mm
- Working pressure
- 32.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 45° heavy-series flangeOriginal Chinese: 45°法兰-重型
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
