Individual hose record

307-4969 Hose Repair Specifications

Excavator · Caterpillar · CAT®312D · Control Valve

Finished length380 mm

Locate this hose

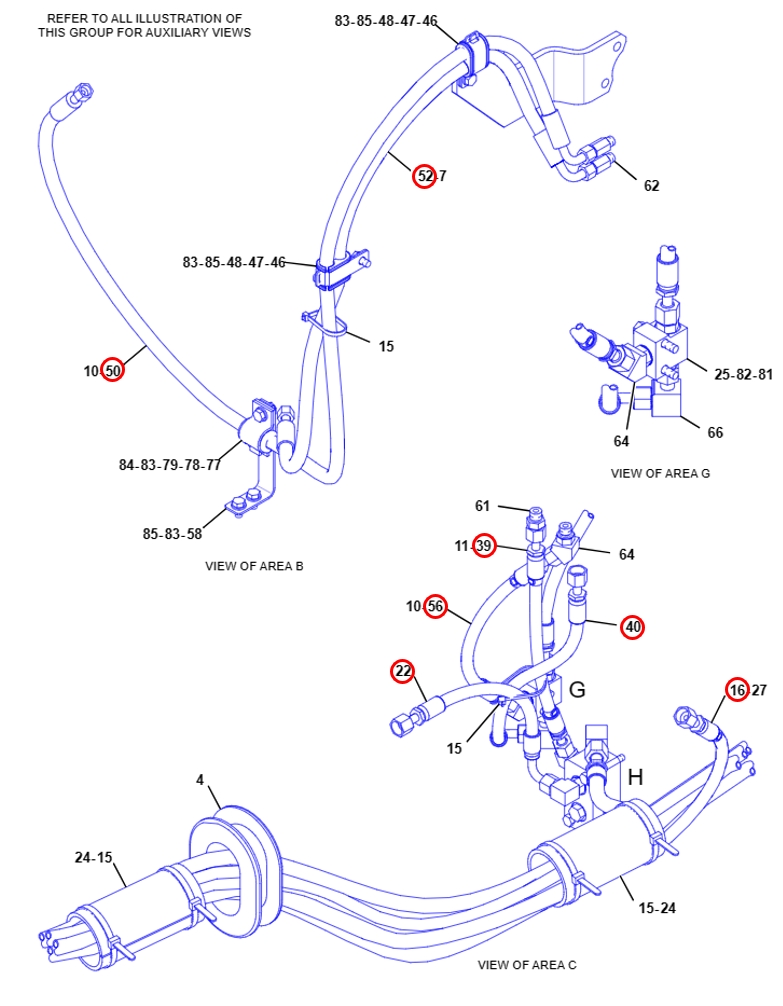

Installation diagram — Pipe No. 56

Locate Pipe No. 56 in the diagram, then confirm part number 307-4969 before removing the hose.

Part number: 307-4969
Diagram pipe number: 56
Installation route: 分配阀下左~过渡阀块(分配阀下)
Hose specification: DN10;1SN-6;10.4Mpa
Finished length: 380 mm
Working pressure: 10.4 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 24

Installation route: 分配阀右上~电磁阀(液压泵后下)

Length: 1,800 mm
Specification: DN10;6SH-6;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 1

Installation route: 分配阀前左~电磁阀(分配阀前下)

Length: 2,300 mm
Specification: DN10;-6;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 4

Installation route: 分配阀下~控制阀(回转接头右)

Length: 880 mm
Specification: DN10;-6;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 5

Installation route: 分配阀下~电磁阀(分配阀下)

Length: 750 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 34

Installation route: 分配阀上右~电磁阀(分配阀下)

Length: 1,350 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 12

Installation route: 分配阀上左~电磁阀(分配阀右前)

Length: 1,350 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 1

Installation route: 分配阀上~电磁阀(分配阀下)

Length: 1,350 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
