Individual hose record

4477059 Hose Repair Specifications

Excavator · Hitachi · ZX135US-3 · Pedal

Finished length2,150 mm

Locate this hose

Installation diagram — Pipe No. 21

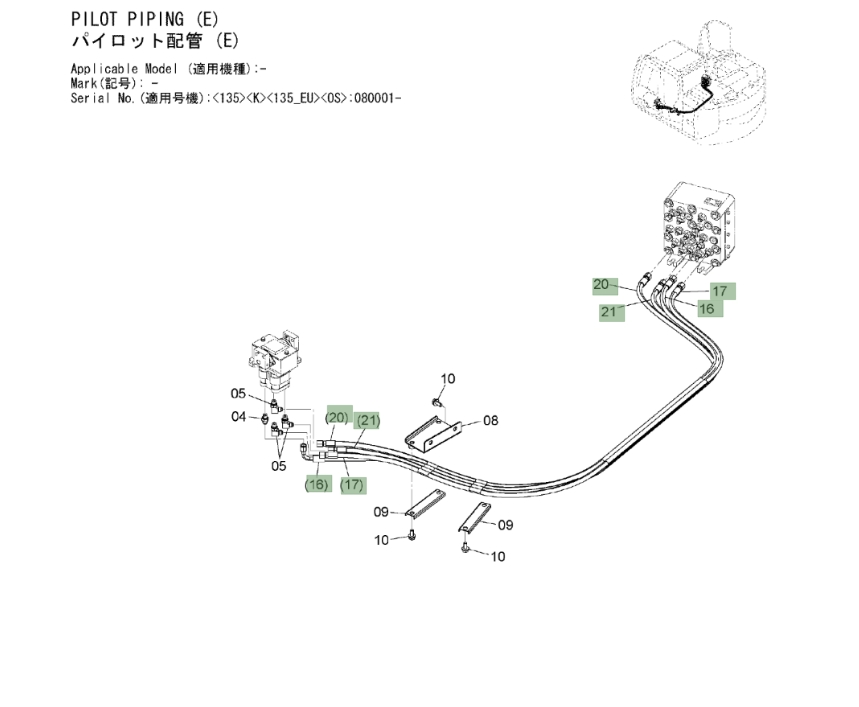

Locate Pipe No. 21 in the diagram, then confirm part number 4477059 before removing the hose.

Hitachi ZX135US-3 installation diagram showing hydraulic hose 4477059 at Pipe No. 21 — Hitachi ZX135US-3Part 4477059 · Pipe No. 21Open full-size diagram

Repair specifications

Part number: 4477059
Diagram pipe number: 21
Installation route: 行走踏板~中转接头
Hose specification: DN10;1SN-6;7Mpa
Finished length: 2,150 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 16

4685576

Installation route: 行走踏板~中转接头

Length: 2,100 mm
Specification: DN10;1SN-6;18MPa
Left fitting: 美制内螺纹74°内锥双六角
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
