Individual hose record

4614852 Hose Repair Specifications

Excavator · Hitachi · ZX330LC · Swivel Joint

Finished length960 mm

Locate this hose

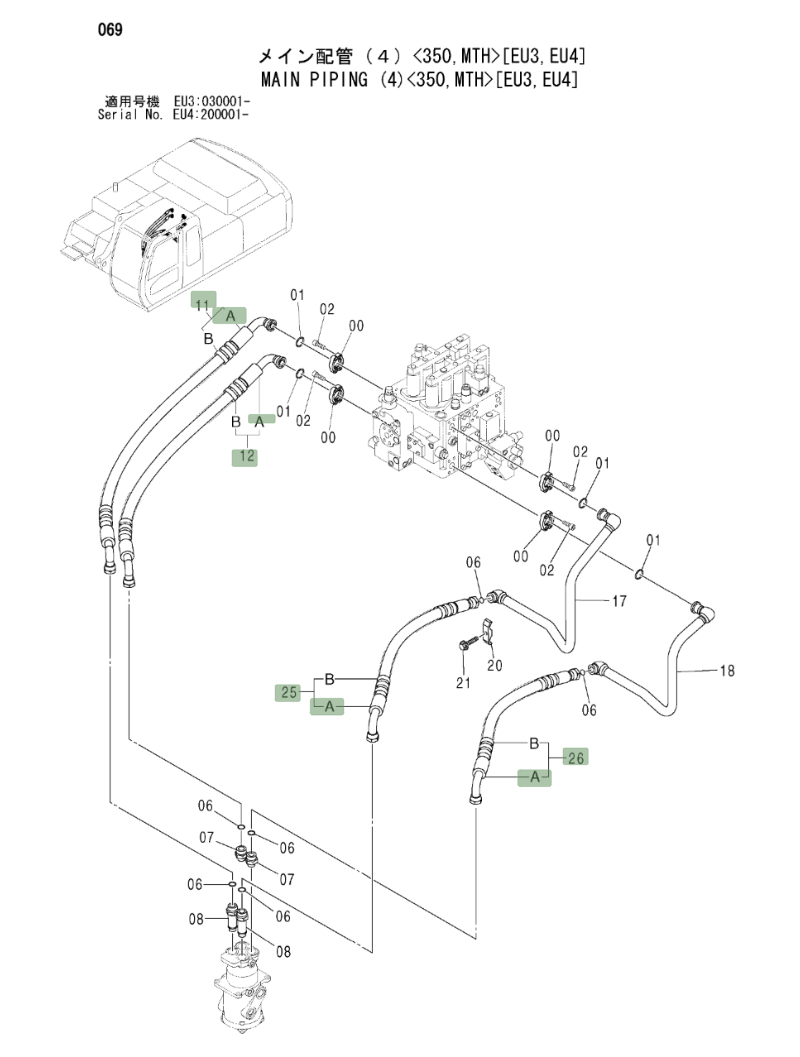

Installation diagram — Pipe No. 26A

Locate Pipe No. 26A in the diagram, then confirm part number 4614852 before removing the hose.

Hitachi ZX330LC installation diagram showing hydraulic hose 4614852 at Pipe No. 26A — **Hitachi ZX330LC**Part 4614852 · Pipe No. 26AOpen full-size diagram

Repair specifications

Part number: 4614852
Diagram pipe number: 26A
Installation route: 回转接头~分配阀左下
Hose specification: DN25;4SH-16;34.5Mpa
Finished length: 960 mm
Working pressure: 34.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 26

9235478

Installation route: 回转接头~分配阀左下

Length: 960 mm
Specification: DN25;4SH-16;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 7

4438098

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,400 mm
Specification: DN13;1SN-08;16MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 0

4377482

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,400 mm
Specification: DN25;4SP-16;32Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 11

9163647

Installation route: 回转接头~分配阀左上/右上

Length: 1,450 mm
Specification: DN25;4SH-16;38.8MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° light-series flangeOriginal Chinese: 90°法兰-轻型

View full repair specifications

Diagram Pipe No. 25

4294424

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,250 mm
Specification: DN25;4SP-16;32Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 24

4284508

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,300 mm
Specification: DN25;4SP-16;32Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 14

4450505

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 25

4284507

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,300 mm
Specification: DN25;4SP-16;32Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
