Individual hose record
504-6416 Hose Repair Specifications
Excavator · Caterpillar · CAT®M317F · Control Valve
Finished length2,780 mm
Locate this hose

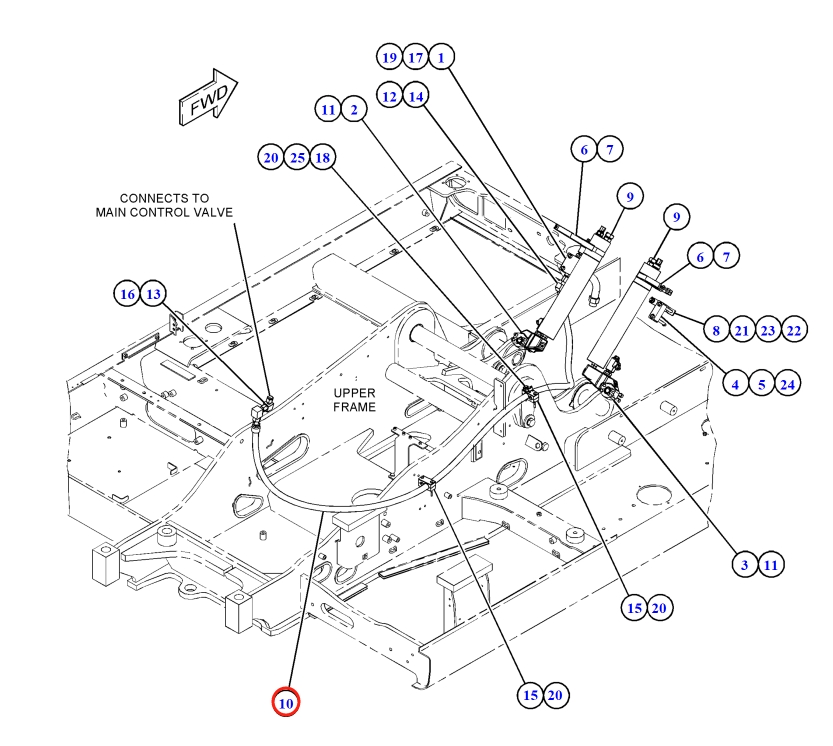

Installation diagram — Pipe No. 10
Locate Pipe No. 10 in the diagram, then confirm part number 504-6416 before removing the hose.
Repair specifications
- Part number
- 504-6416
- Diagram pipe number
- 10
- Installation route
- 分配阀~
- Hose specification
- DN16;1SN-10;10.5Mpa
- Finished length
- 2,780 mm
- Working pressure
- 10.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
