Individual hose record

4356518 Hose Repair Specifications

Excavator · Hitachi · ZX450LC · Attachments – Lock Valve

Finished length850 mm

Locate this hose

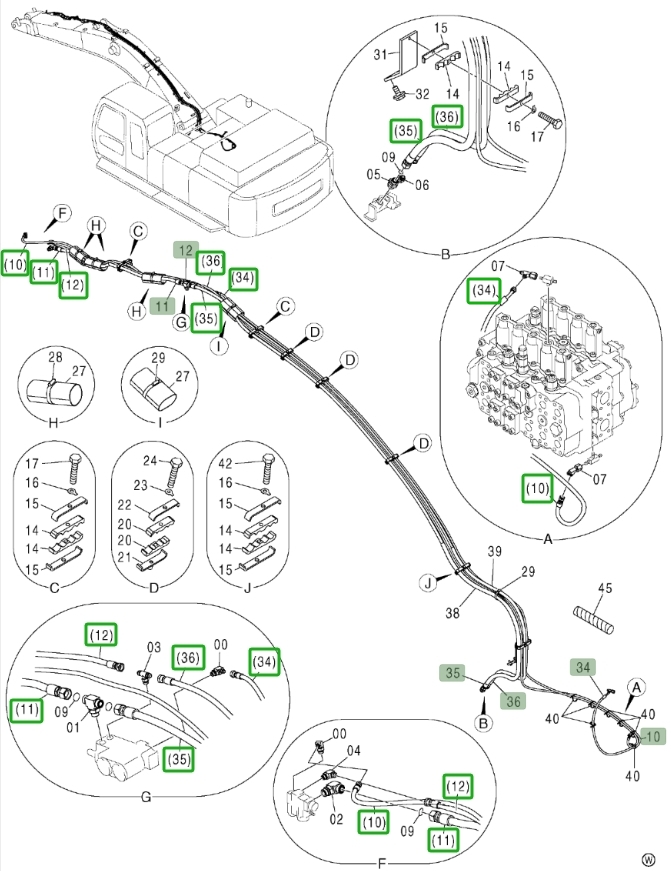

Installation diagram — Pipe No. 11

Locate Pipe No. 11 in the diagram, then confirm part number 4356518 before removing the hose.

Hitachi ZX450LC installation diagram showing hydraulic hose 4356518 at Pipe No. 11 — Hitachi ZX450LCPart 4356518 · Pipe No. 11Open full-size diagram

Repair specifications

Part number: 4356518
Diagram pipe number: 11
Installation route: 前小臂油缸锁止阀~后小臂油缸锁止阀
Hose specification: DN12;4SP-8;34.5Mpa
Finished length: 850 mm
Working pressure: 34.5 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 21

4322514

Installation route: 大臂油缸锁止阀~过渡阀块(锁止阀)

Length: 960 mm
Specification: DN10;1SN-06;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
