Individual hose record

207-6235 Hose Repair Specifications

Excavator · Caterpillar · CAT®315C · Attachments

Finished length1,300 mm

Locate this hose

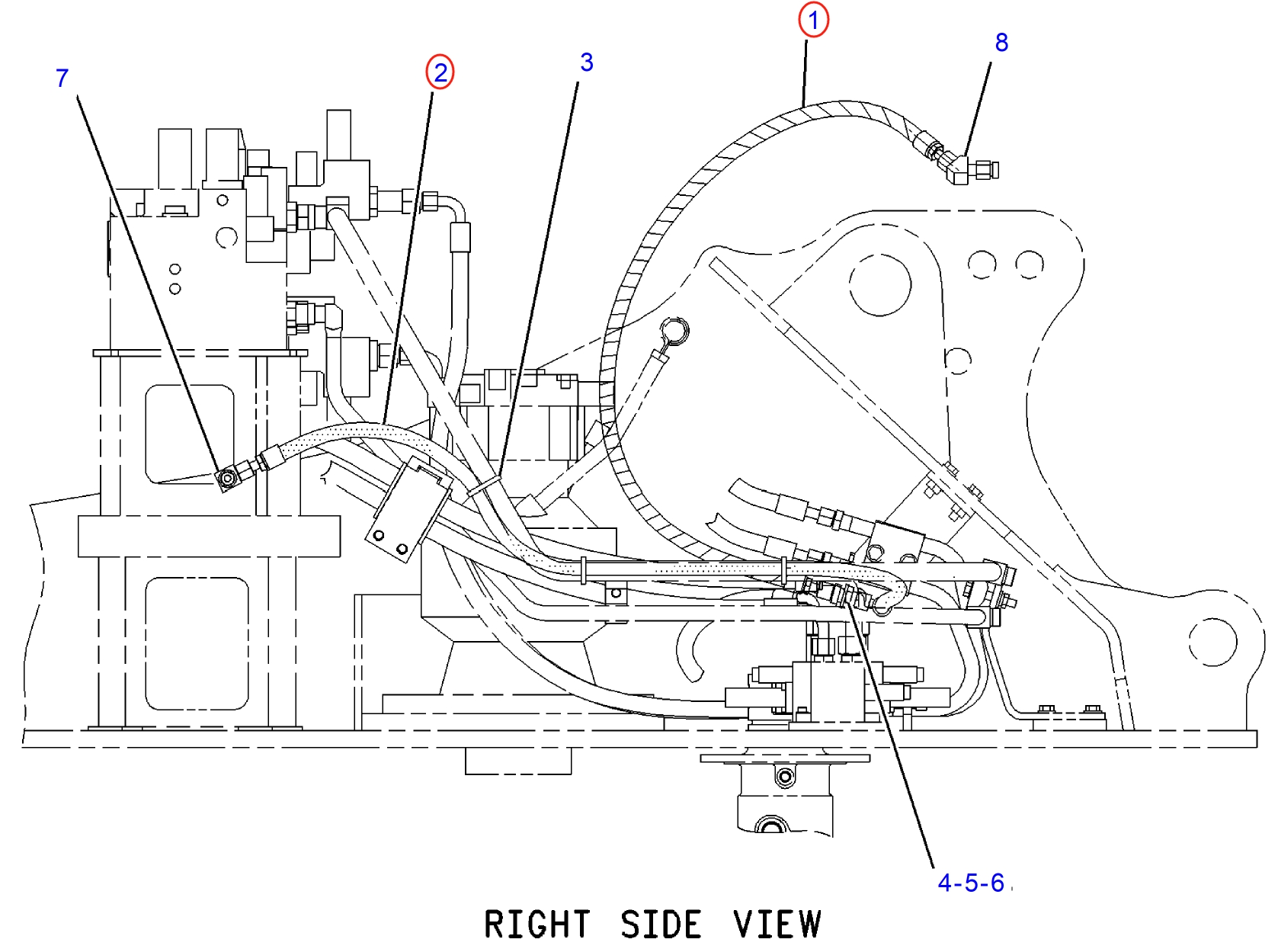

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 207-6235 before removing the hose.

Caterpillar CAT®315C installation diagram showing hydraulic hose 207-6235 at Pipe No. 1 — **Caterpillar CAT®315C**Part 207-6235 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: 207-6235
Diagram pipe number: 1
Installation route: 大臂(附加装置)~过渡阀块(大臂下)
Hose specification: DN13;1SN-8;14Mpa
Finished length: 1,300 mm
Working pressure: 14 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 25

194-0325

Installation route: 过渡阀块(分配阀下右)~

Length: 340 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 2

197-2168

Installation route: 大臂(前段)~小臂

Length: 1,290 mm
Specification: DN13;4SP-8;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 2

198-0725

Installation route: 大臂(附加装置)~液压泵

Length: 4,150 mm
Specification: DN6;2SN-4;40Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 7

4I-0769

Installation route: 左踏板~分配阀

Length: 2,850 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 7

4I-3511

Installation route: 左踏板~分配阀上右

Length: 3,350 mm
Specification: DN10;-6;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 2

197-2096

Installation route: 大臂(前段)~小臂

Length: 1,500 mm
Specification: DN13;4SP-8;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 3

7Y-4190

Installation route: 过渡阀块(分配阀下左)~

Length: 1,650 mm
Specification: DN10;-6;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

198-0722

Installation route: 大臂(附加装置)~液压泵

Length: 4,150 mm
Specification: DN6;2SN-4;40Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
