Individual hose record

7Y-4193 Hose Repair Specifications

Excavator · Caterpillar · CAT®314D LCR · Control Lever

Finished length2,500 mm

Locate this hose

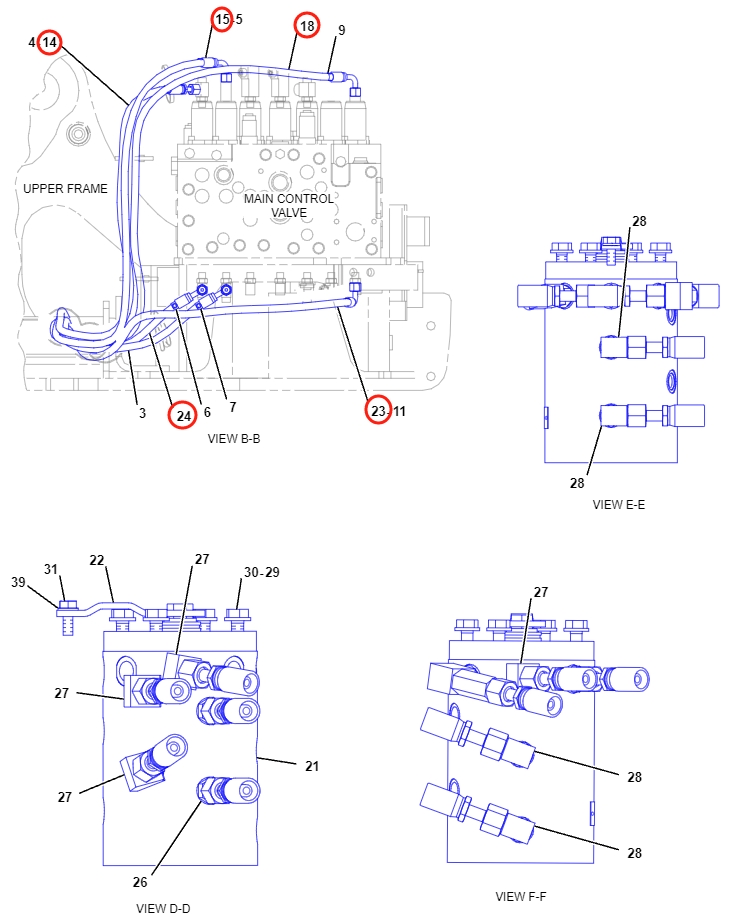

Installation diagram — Pipe No. 14

Locate Pipe No. 14 in the diagram, then confirm part number 7Y-4193 before removing the hose.

Caterpillar CAT®314D LCR installation diagram showing hydraulic hose 7Y-4193 at Pipe No. 14 — Caterpillar CAT®314D LCRPart 7Y-4193 · Pipe No. 14Open full-size diagram

Repair specifications

Part number: 7Y-4193
Diagram pipe number: 14
Installation route: 模式转换阀~分配阀上
Hose specification: DN10;1SN-6;10.4Mpa
Finished length: 2,500 mm
Working pressure: 10.4 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 18

307-5000

Installation route: 中转接头~模式转换阀

Length: 360 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 12

5I-4076

Installation route: 中转接头~模式转换阀

Length: 1,350 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 16

087-5761

Installation route: 中转接头~模式转换阀

Length: 1,250 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 17

104-8950

Installation route: 中转接头~模式转换阀

Length: 1,200 mm
Specification: DN10;-6;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 17

307-4997

Installation route: 中转接头~模式转换阀

Length: 390 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 2

4I-1037

Installation route: 中转接头~模式转换阀

Length: 1,400 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

4I-5906

Installation route: 中转接头~模式转换阀

Length: 600 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 41

292-7193

Installation route: 中转接头~模式转换阀

Length: 290 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
