Individual hose record
KHJ2036 Hose Repair Specifications
Excavator · Case · CX130C W/B · Attachments – Breaker
Finished length750 mm
Locate this hose

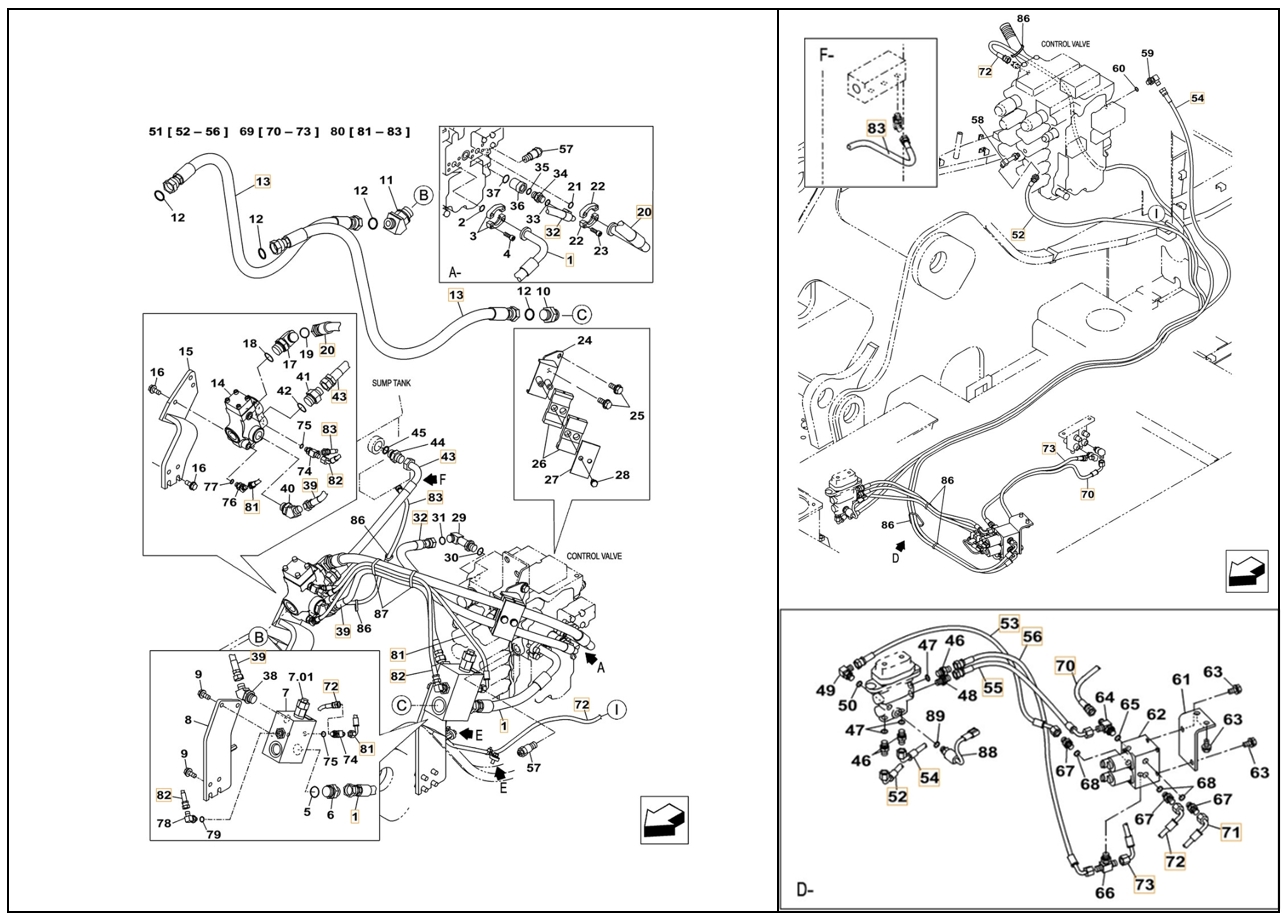

Installation diagram — Pipe No. 70
Locate Pipe No. 70 in the diagram, then confirm part number KHJ2036 before removing the hose.
Repair specifications
- Part number
- KHJ2036
- Diagram pipe number
- 70
- Installation route
- 电磁阀(破碎器)~进回油阀
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 750 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
