Individual hose record
730502003063 Hose Repair Specifications
Excavator · Sunward · SWE150W · Solenoid Valve
Finished length500 mm
Locate this hose

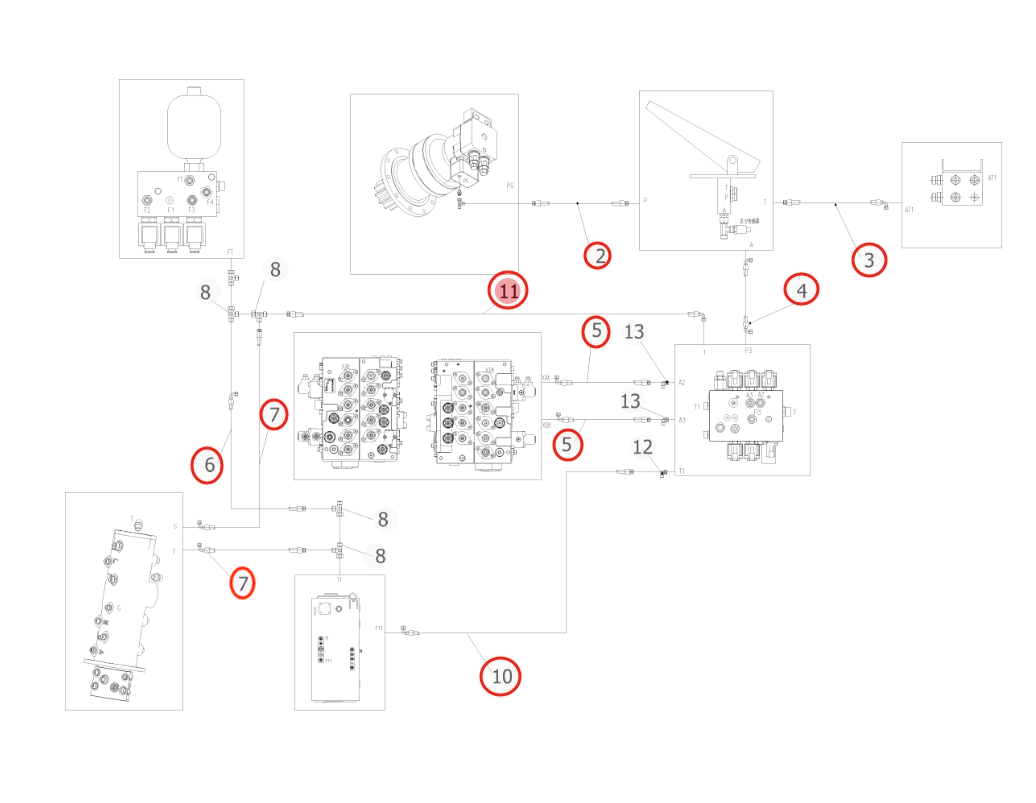

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number 730502003063 before removing the hose.
Repair specifications
- Part number
- 730502003063
- Diagram pipe number
- 11
- Installation route
- 行走电磁阀T~电磁阀(蓄能器)FT
- Hose specification
- DN8;1SN-05;22.5MPa
- Finished length
- 500 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
