8U-6223 Hose Repair Specifications

Excavator · Caterpillar · CAT®212B · Attachments – Breaker

Finished length1,895 mm

Locate this hose

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 8U-6223 before removing the hose.

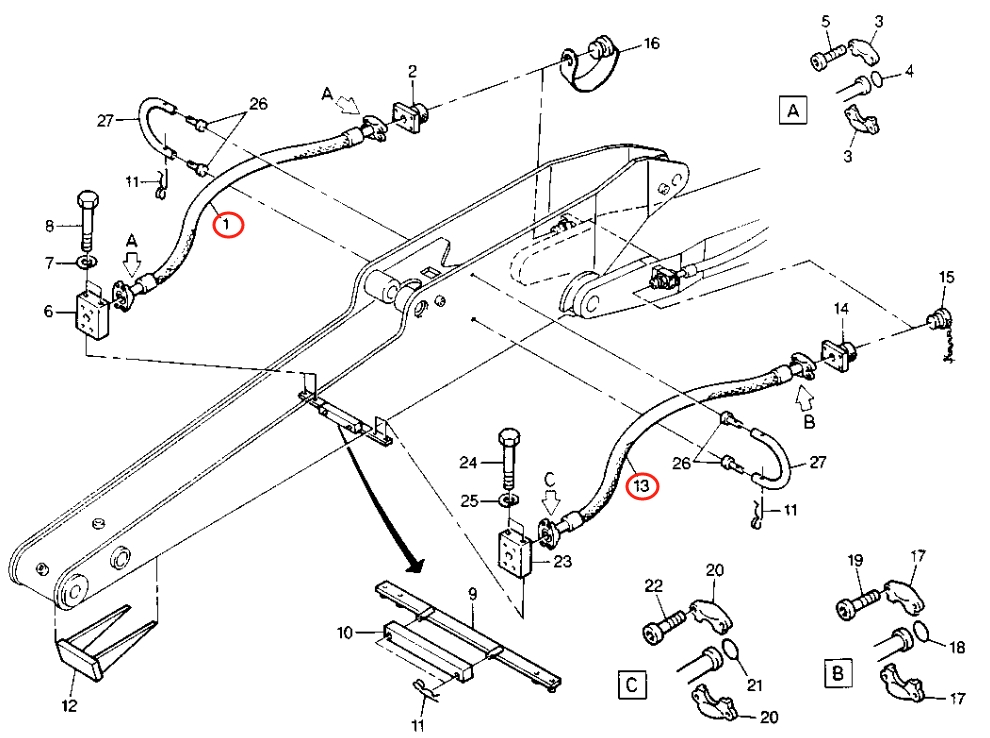

Caterpillar CAT®212B installation diagram showing hydraulic hose 8U-6223 at Pipe No. 1 — **Caterpillar CAT®212B**Part 8U-6223 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: 8U-6223
Diagram pipe number: 1
Installation route: 大臂(破碎器)~过渡阀块(小臂)
Hose specification: DN19;4SP-12;35Mpa
Finished length: 1,895 mm
Working pressure: 35 MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Quantity: 1
