Individual hose record

6W-2352 Hose Repair Specifications

Excavator · Caterpillar · CAT®245B · Attachments

Finished length1,700 mm

Locate this hose

Installation diagram — Pipe No. 16

Locate Pipe No. 16 in the diagram, then confirm part number 6W-2352 before removing the hose.

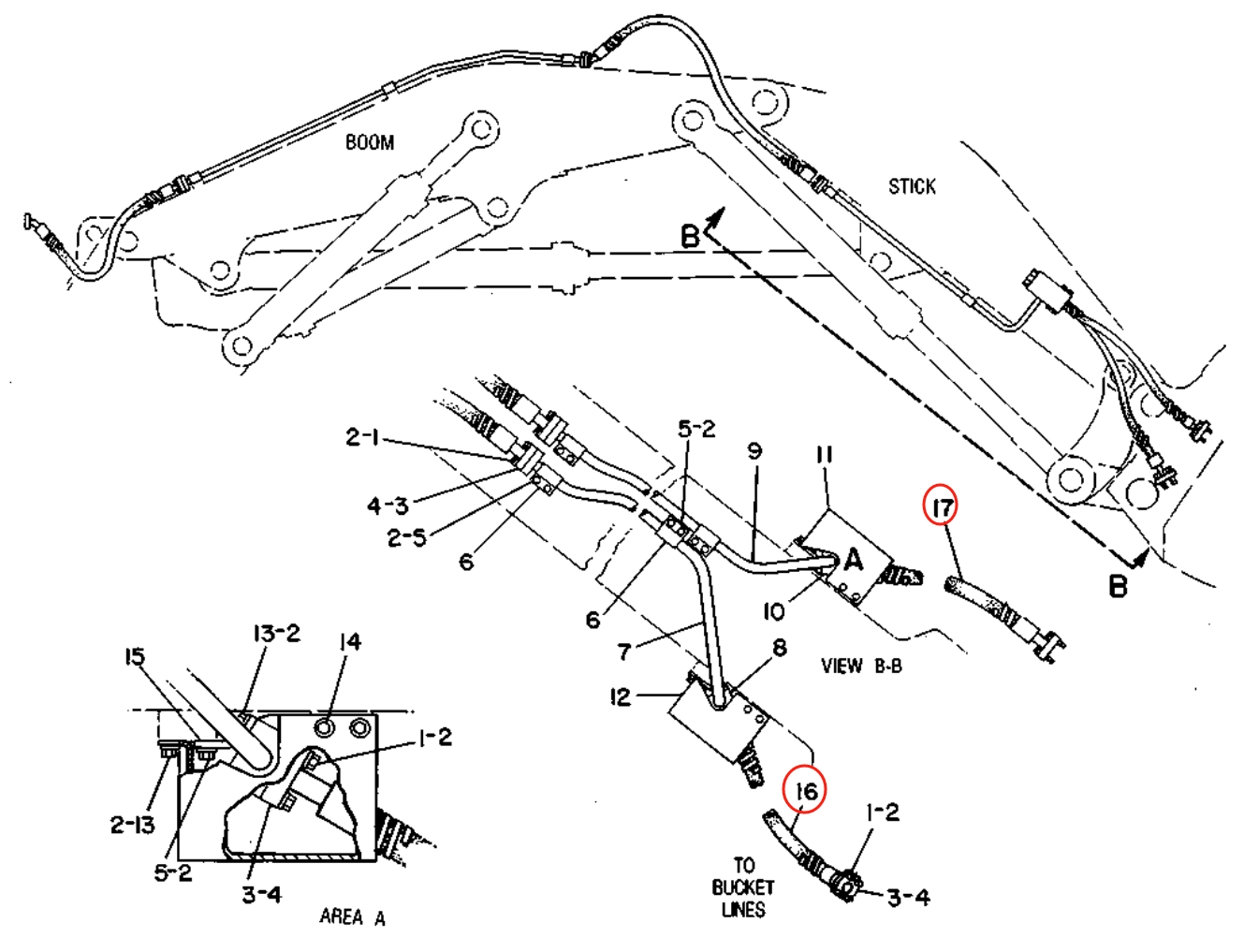

Caterpillar CAT®245B installation diagram showing hydraulic hose 6W-2352 at Pipe No. 16 — Caterpillar CAT®245BPart 6W-2352 · Pipe No. 16Open full-size diagram

Repair specifications

Part number: 6W-2352
Diagram pipe number: 16
Installation route: 小臂(小臂侧)~正铲油缸
Hose specification: DN25;4SP-16;35Mpa
Finished length: 1,700 mm
Working pressure: 35 MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 30

2V-1061

Installation route: 铁管(分配阀)~铁管(大臂下)

Length: 1,920 mm
Specification: DN32;4SP-20;35Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 17

3V-9375

Installation route: 小臂(小臂侧)~正铲油缸

Length: 1,525 mm
Specification: DN25;4SP-16;35Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 13

5V-4045

Installation route: 控制阀(配重块)~

Length: 764 mm
Specification: DN19;4SP-12;28Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 3

4V-9315

Installation route: 安全阀~过渡阀块(中转接头后)

Length: 2,210 mm
Specification: DN10;4SP-6;28Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 39

7V-1038

Installation route: 过渡阀块(驾驶室前)~接线板(驾驶室中)

Length: 279 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
