Individual hose record

4487215 Hose Repair Specifications

Excavator · Hitachi · ZX670LC-5A · Swing Motor

Finished length650 mm

Locate this hose

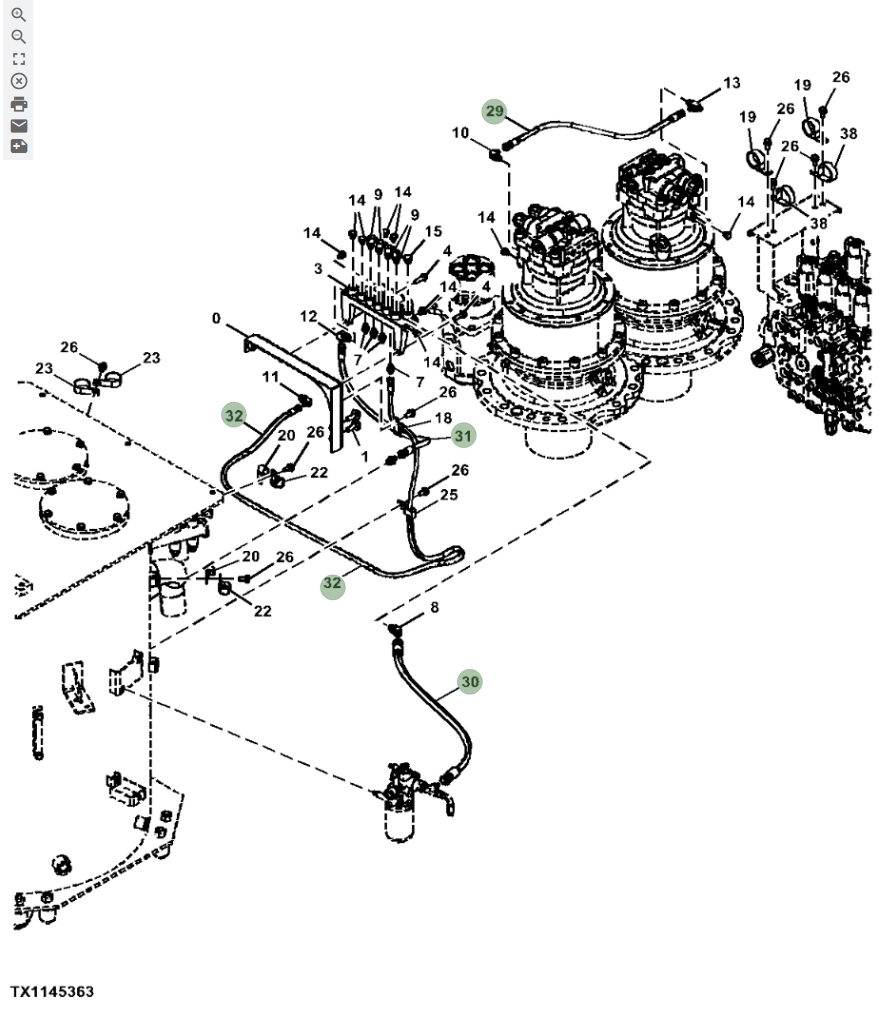

Installation diagram — Pipe No. 29

Locate Pipe No. 29 in the diagram, then confirm part number 4487215 before removing the hose.

Hitachi ZX670LC-5A installation diagram showing hydraulic hose 4487215 at Pipe No. 29 — Hitachi ZX670LC-5APart 4487215 · Pipe No. 29Open full-size diagram

Repair specifications

Part number: 4487215
Diagram pipe number: 29
Installation route: 回转马达(左)~回转马达(右)
Hose specification: DN10;1SN-6;7Mpa
Finished length: 650 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 11

4668896

Installation route: 回转马达~中转接头

Length: 700 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 6

4636895

Installation route: 回转马达(左)~液压油箱

Length: 2,250 mm
Specification: DN12;1SN-08;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
