Individual hose record
4613763 Hose Repair Specifications
Excavator · Hitachi · ZX75US-5N · Hydraulic Tank
Finished length450 mm
Locate this hose

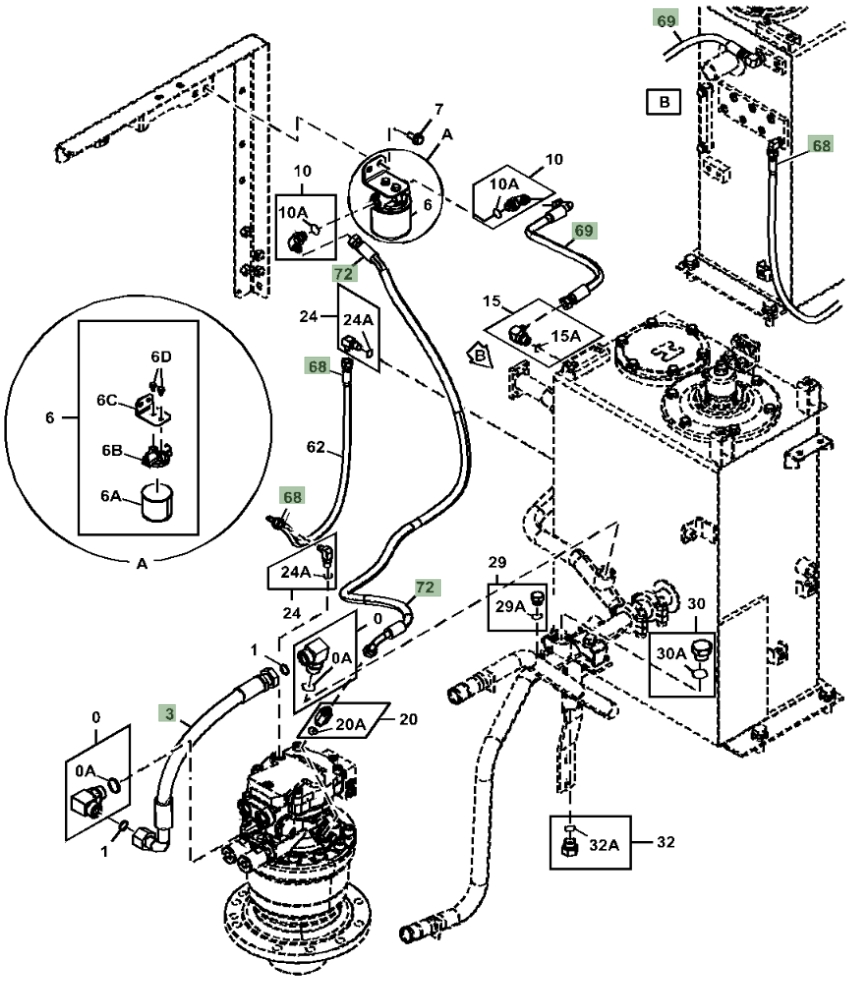

Installation diagram — Pipe No. 69
Locate Pipe No. 69 in the diagram, then confirm part number 4613763 before removing the hose.
Repair specifications
- Part number
- 4613763
- Diagram pipe number
- 69
- Installation route
- 液压油箱~先导滤芯(液压油箱)
- Hose specification
- DN10;1SN-06;7Mpa
- Finished length
- 450 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
