Individual hose record

2184-1036D118 Hose Repair Specifications

Excavator · Doosan · DX140LCR · Swing Motor

Finished length580 mm

Repair specifications

Part number
2184-1036D118
Diagram pipe number
12
Installation route
Swing motor → return steel line (hydraulic tank)Original Chinese: 回转马达~回油铁管(液压油箱)
Hose specification
DN13;1SN-08;16MPa
Finished length
580 mm
Working pressure
16 MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity
1

Manual diagrams

Installation and Exploded Views

A red marker identifies a reviewed hose location.

Installation / exploded view (hose No. 12)

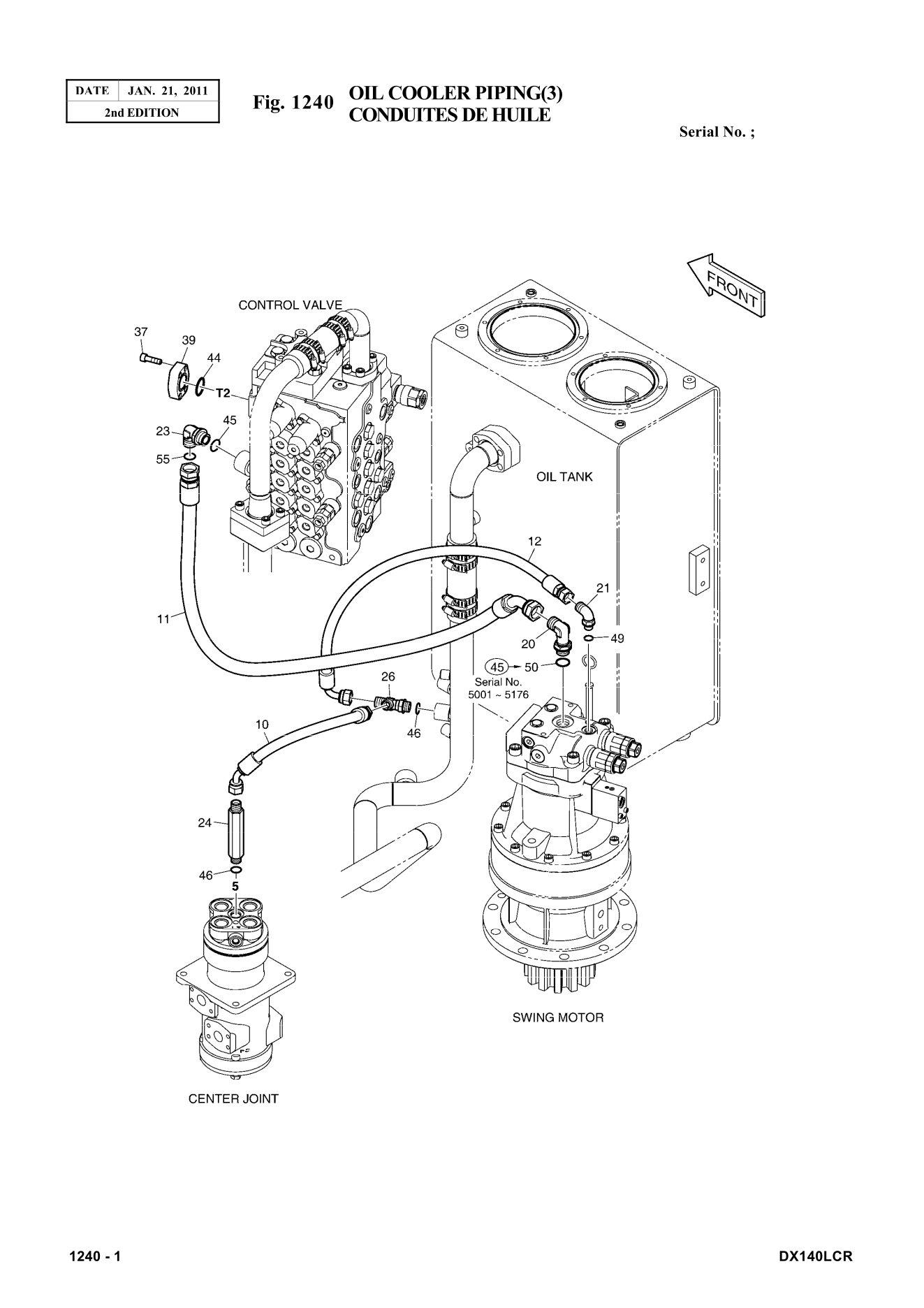

Verified hose locationInstallation / exploded view (hose No. 12)Current marker: Pipe No. 12Doosan DX140LCR Excavator Parts ManualManual page 138 · Printed page 1240-1 · Fig. 1240 OIL COOLER PIPING(3)View full-sizeDownload manual
