F013336 Hydraulic Hose Specifications

Forestry Machine · John Deere · 1210G Forwarder

Total length700 mm

Hose drawing

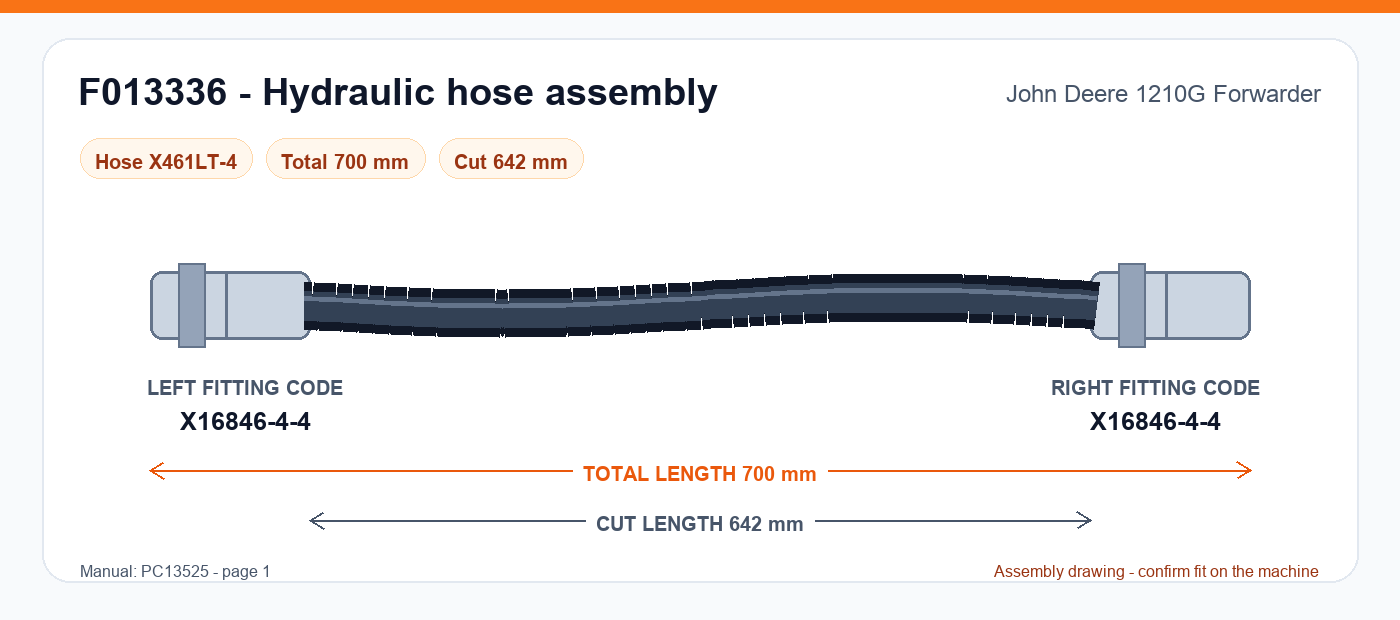

Hose assembly drawing

Check the total length and both fitting codes before fabrication.

F013336 hydraulic hose assembly drawing for John Deere 1210G Forwarder - 700 mm total length, left fitting X16846-4-4, right fitting X16846-4-4 — F013336 - 700 mm total length. Select the drawing to open it full size.

Repair measurements

These text values can be translated and copied. Confirm them against the machine before fabrication.

Machine: John Deere 1210G Forwarder
Part number: F013336
Hose type: X461LT-4
Total length: 700 mm
Cut length: 642 mm
Left-end hydraulic fitting code: X16846-4-4Look up this code
Right-end hydraulic fitting code: X16846-4-4Look up this code
Manual reference: PC13525, page 1

Hose assembly details

Part number: F013336
Hose type: X461LT-4
Total length: 700 mm
Cut length: 642 mm
Left fitting code: X16846-4-4
Right fitting code: X16846-4-4
Application: 1210G Forwarder: Stage V, Rotating and Leveling Cabin Gen II, Grey
Manual page: 1

Download manual

Same machine

More hoses for this machine

Manual page 2

F057583

Application: 1210G Forwarder: Stage V, Rotating and Leveling Cabin Gen II, Grey

Length: 750 mm
Cut length: 681 mm
Specification: X461LT-6
Left fitting: X13W46-8-6
Right fitting: X16846-8-6

View hose specifications

Manual page 3

F695926

Application: 1210G Forwarder: Stage V, Rotating and Leveling Cabin Gen II, Grey

Length: 3,250 mm
Cut length: 3,166 mm
Specification: X487TC-12
Left fitting: X10646-12-12
Right fitting: X10646-12-12

View hose specifications

Manual page 2

F062663

Application: 1210G Forwarder: Stage V, Rotating and Leveling Cabin Gen II, Grey

Length: 1,350 mm
Cut length: 1,281 mm
Specification: X461LT-6
Left fitting: X13W46-8-6
Right fitting: X16846-8-6

View hose specifications

Manual page 4

F729581

Application: 1210G Forwarder: Stage V, Rotating and Leveling Cabin Gen II, Grey

Length: 485 mm
Cut length: 430 mm
Specification: X787TC-8
Left fitting: X10677-8-8
Right fitting: X10677-8-8

View hose specifications

Manual page 3

F076421

Application: 1210G Forwarder: Stage V, Rotating and Leveling Cabin Gen II, Grey

Length: 1,250 mm
Cut length: 1,200 mm
Specification: XH31-4
Left fitting: XKC9VS-8-4
Right fitting: XKC9VS-8-4

View hose specifications

Manual page 3

F075467

Application: 1210G Forwarder: Stage V, Rotating and Leveling Cabin Gen II, Grey

Length: 1,200 mm
Cut length: 1,134 mm
Specification: XH31-4
Left fitting: XK06VS-6-4
Right fitting: XK06VS-6-4

View hose specifications

Manual page 2

F064363

Application: 1210G Forwarder: Stage V, Rotating and Leveling Cabin Gen II, Grey

Length: 410 mm
Cut length: 315 mm
Specification: X461LT-12
Left fitting: X13946-12-12
Right fitting: X10646-12-12

View hose specifications

Manual page 2

F072872

Application: 1210G Forwarder: Stage V, Rotating and Leveling Cabin Gen II, Grey

Length: 3,450 mm
Cut length: 3,392 mm
Specification: X461LT-6
Left fitting: X13946-6-6
Right fitting: X10646-6-6

View hose specifications

For reference only. Confirm the actual hose before fabrication.
