Individual hose record
6W-1395 Hose Repair Specifications
Excavator · Caterpillar · CAT®229 · Swivel Joint
Finished length950 mm
Locate this hose

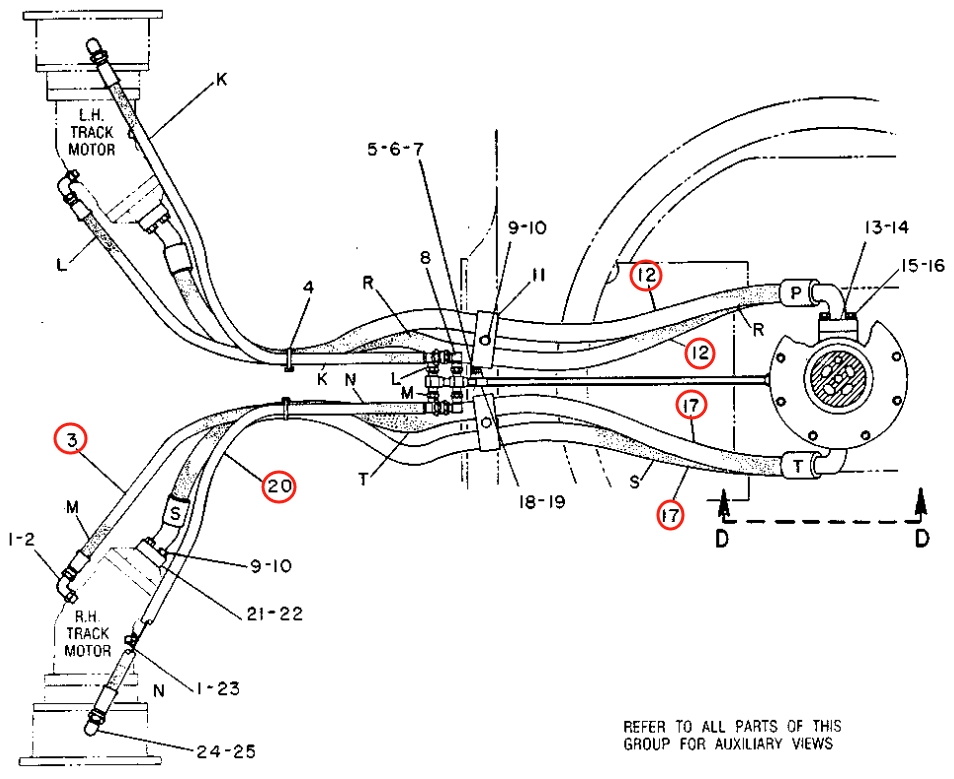

Installation diagram — Pipe No. 3
Locate Pipe No. 3 in the diagram, then confirm part number 6W-1395 before removing the hose.
Repair specifications
- Part number
- 6W-1395
- Diagram pipe number
- 3
- Installation route
- 回转接头~行走马达(规格1)
- Hose specification
- DN13;1SN-8;14Mpa
- Finished length
- 950 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Quantity
- 2
For reference only. Confirm the actual hose before fabrication.
