730502004812 Hose Repair Specifications

Excavator · Sunward · SWE25UF · Swing Motor

Finished length900 mm

Locate this hose

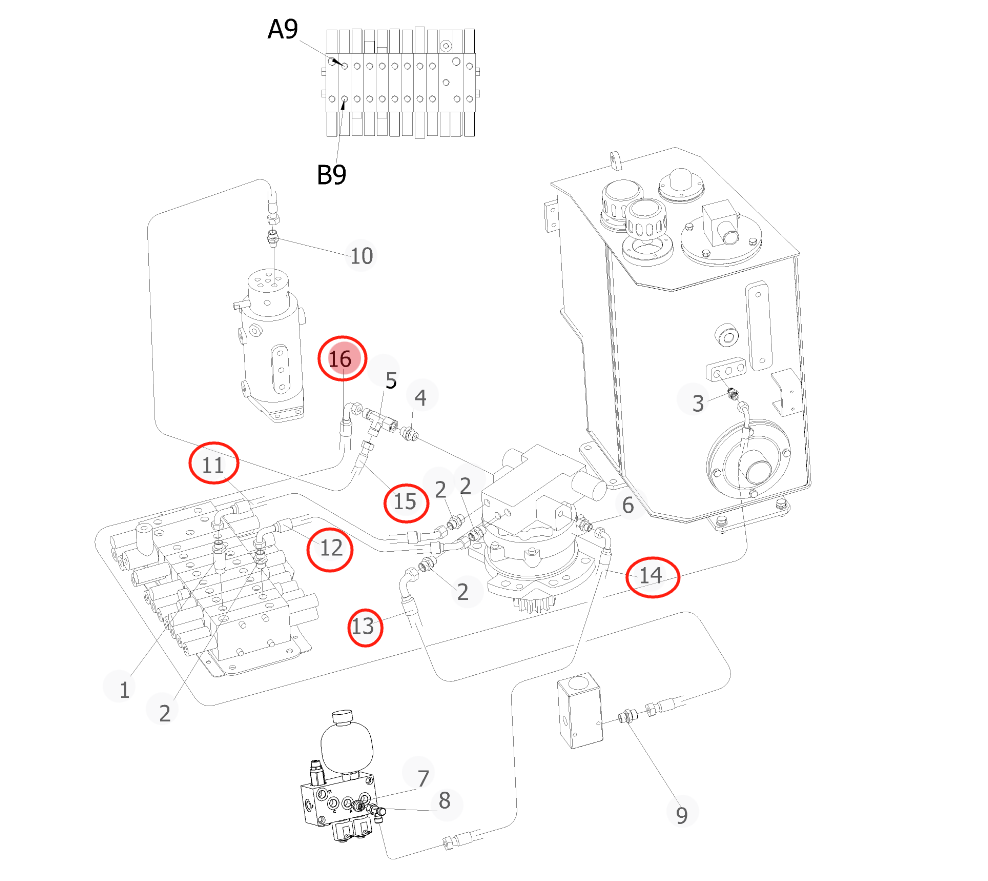

Installation diagram — Pipe No. 13

Locate Pipe No. 13 in the diagram, then confirm part number 730502004812 before removing the hose.

Sunward SWE25UF installation diagram showing hydraulic hose 730502004812 at Pipe No. 13 — Sunward SWE25UFPart 730502004812 · Pipe No. 13Open full-size diagram

Repair specifications

Part number: 730502004812
Diagram pipe number: 13
Installation route: 回转马达~过渡阀块(液压油箱旁)
Hose specification: DN10;1SN-06;20.7MPa
Finished length: 900 mm
Working pressure: 20.7 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1

For reference only. Confirm the actual hose before fabrication.
