Individual hose record

6W-6303 Hose Repair Specifications

Excavator · Caterpillar · CAT®225B · Hydraulic Pump

Finished length1,450 mm

Locate this hose

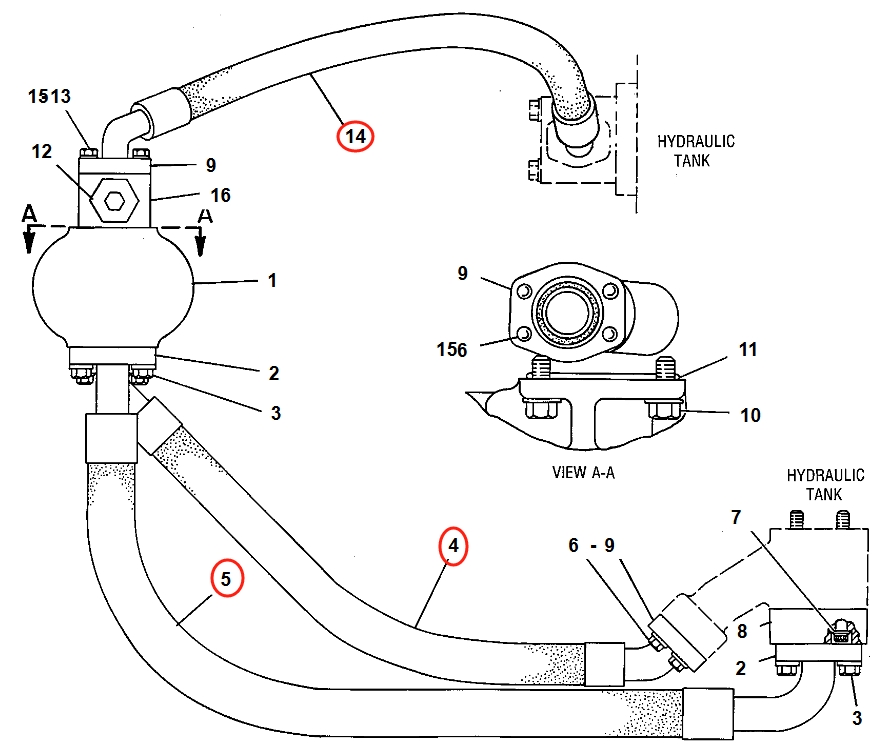

Installation diagram — Pipe No. 14

Locate Pipe No. 14 in the diagram, then confirm part number 6W-6303 before removing the hose.

Caterpillar CAT®225B installation diagram showing hydraulic hose 6W-6303 at Pipe No. 14 — Caterpillar CAT®225BPart 6W-6303 · Pipe No. 14Open full-size diagram

Repair specifications

Part number: 6W-6303
Diagram pipe number: 14
Installation route: 先导泵~液压油箱
Hose specification: DN25;4SP-16;28Mpa
Finished length: 1,450 mm
Working pressure: 28 MPa
Left fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 5

5S-9348

Installation route: 先导泵~法兰板(液压油箱左)

Length: 1,385 mm
Specification: DN25;4SP-16;28Mpa
Left fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting: Light-series flangeOriginal Chinese: 法兰-轻型

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
