Individual hose record
DS2092304 Hose Repair Specifications
Excavator · Doosan · E57W · Control Lever
Finished length1,160 mm
Locate this hose

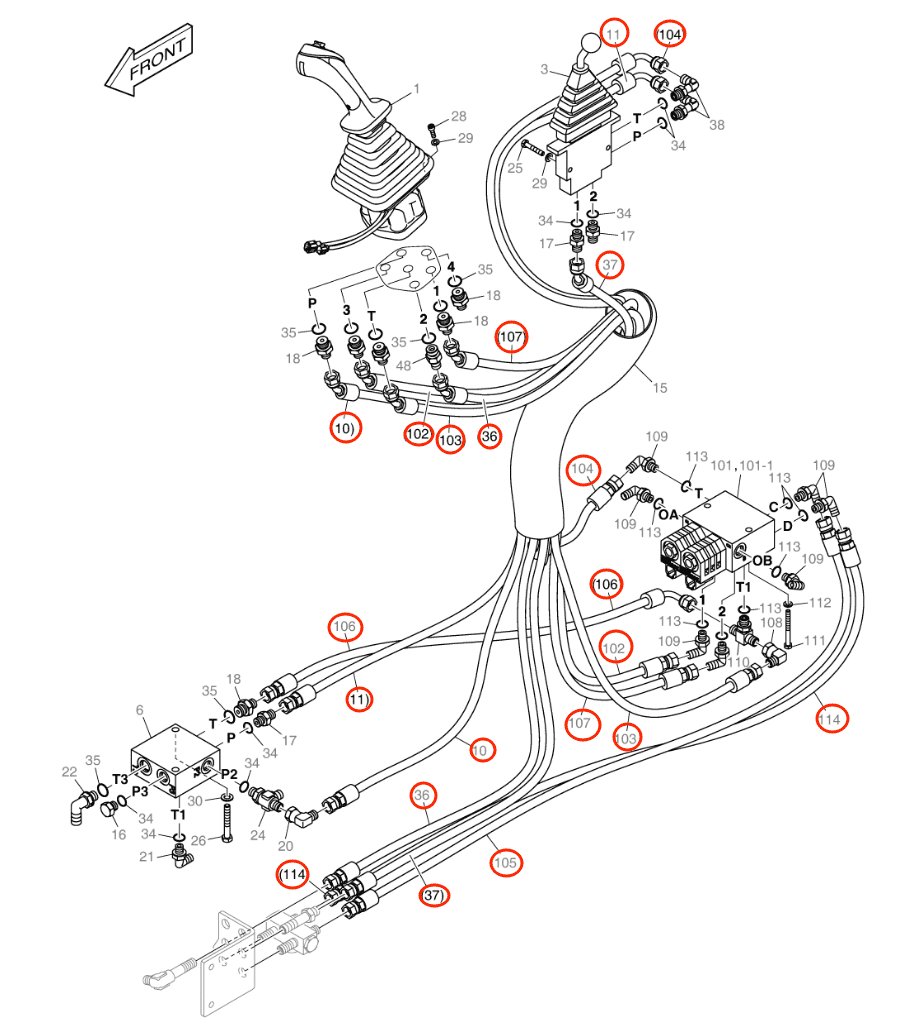

Installation diagram — Pipe No. 10
Locate Pipe No. 10 in the diagram, then confirm part number DS2092304 before removing the hose.
Repair specifications
- Part number
- DS2092304
- Diagram pipe number
- 10
- Installation route
- 左手柄P口~进回油阀P2口
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 1,160 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
- Quantity
- 1
Same system
Related Hoses
- Length
- 950 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Length
- 1,090 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
- Length
- 1,150 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
- Length
- 1,150 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
For reference only. Confirm the actual hose before fabrication.
