Individual hose record

4282456 Hose Repair Specifications

Excavator · Hitachi · EX220LC-3 · Control Valve

Finished length550 mm

Locate this hose

Installation diagram — Pipe No. 13

Locate Pipe No. 13 in the diagram, then confirm part number 4282456 before removing the hose.

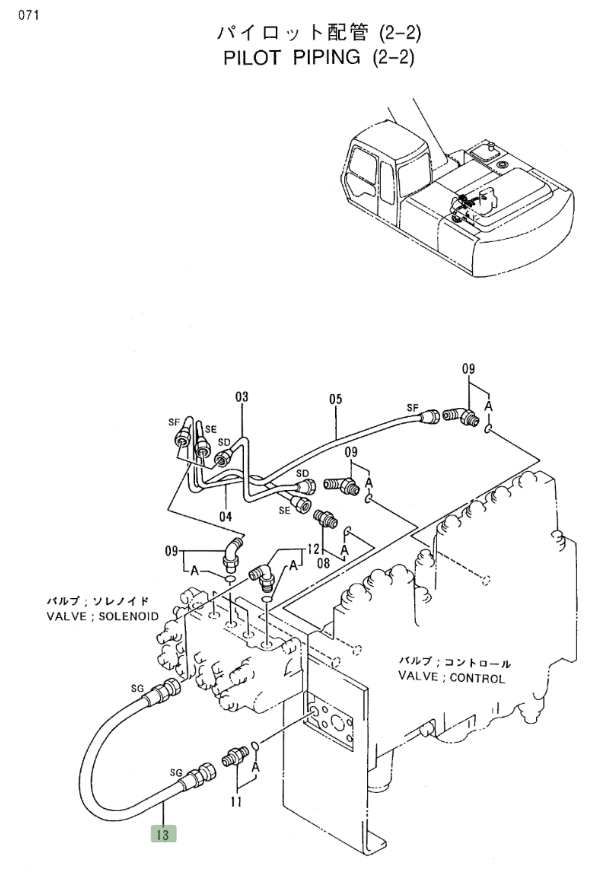

Hitachi EX220LC-3 installation diagram showing hydraulic hose 4282456 at Pipe No. 13 — Hitachi EX220LC-3Part 4282456 · Pipe No. 13Open full-size diagram

Repair specifications

Part number: 4282456
Diagram pipe number: 13
Installation route: 分配阀左~电磁阀
Hose specification: DN10;1层纤维-6;14MPa
Finished length: 550 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 33

4266677

Installation route: 分配阀下~过渡阀块(手柄)

Length: 1,600 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
