108-7428 Hose Repair Specifications

Excavator · Caterpillar · CAT®307-A · Boom Assembly

Finished length1,500 mm

Locate this hose

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 108-7428 before removing the hose.

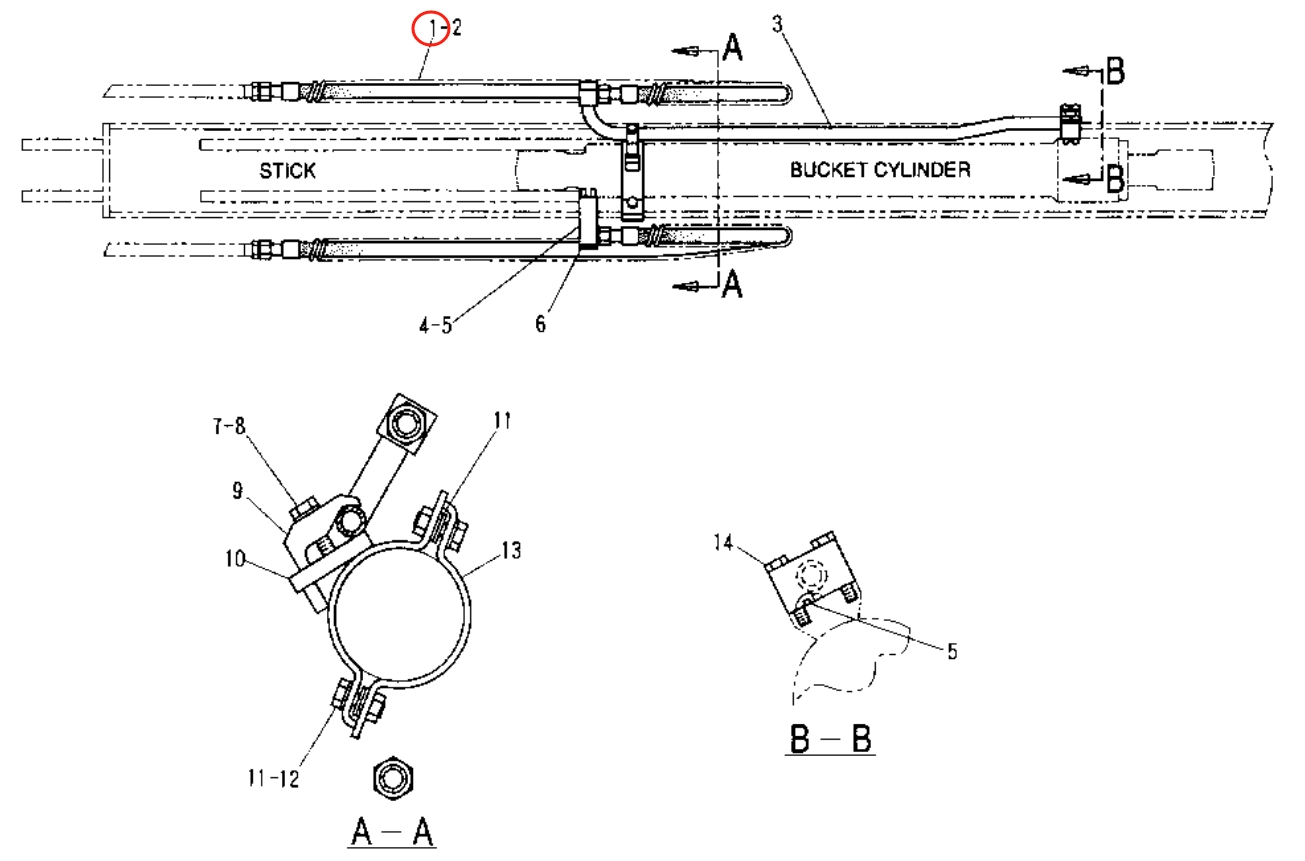

Caterpillar CAT®307-A installation diagram showing hydraulic hose 108-7428 at Pipe No. 1 — **Caterpillar CAT®307-A**Part 108-7428 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: 108-7428
Diagram pipe number: 1
Installation route: Bucket cylinderOriginal Chinese: 铲斗油缸
Hose specification: DN13;4SP-8;28Mpa
Finished length: 1,500 mm
Working pressure: 28 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2
