Individual hose record

4628891 Hose Repair Specifications

Excavator · Hitachi · ZXS370F-3 · Hydraulic Tank

Finished length580 mm

Locate this hose

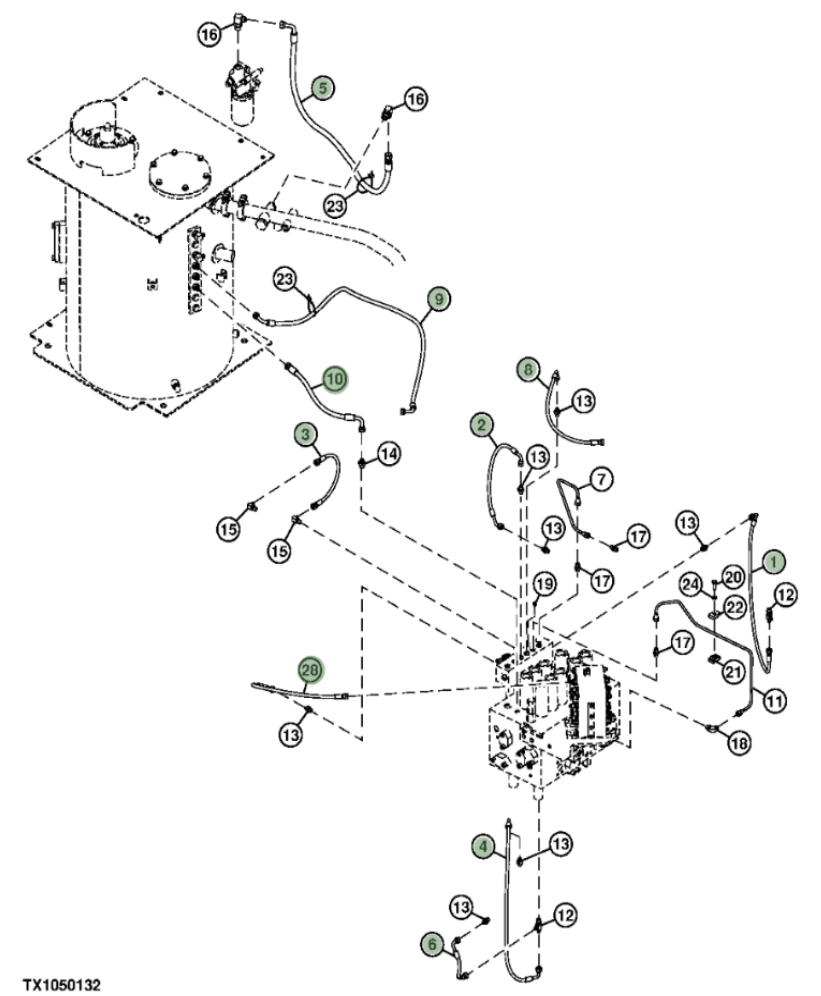

Installation diagram — Pipe No. 10

Locate Pipe No. 10 in the diagram, then confirm part number 4628891 before removing the hose.

Hitachi ZXS370F-3 installation diagram showing hydraulic hose 4628891 at Pipe No. 10 — Hitachi ZXS370F-3Part 4628891 · Pipe No. 10Open full-size diagram

Repair specifications

Part number: 4628891
Diagram pipe number: 10
Installation route: 液压油箱~电磁阀
Hose specification: DN10;1SN-06;18MPa
Finished length: 580 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 18

4668866

Installation route: 回油铁管(液压油箱)~供油泵

Length: 2,050 mm
Specification: DN10;1SN-6;18MPa
Left fitting: 美制内螺纹74°内锥双六角
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 8

4648580

Installation route: 液压油箱~电磁阀

Length: 390 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
