Individual hose record

207-2627 Hose Repair Specifications

Excavator · Caterpillar · CAT®317B L · Attachments – Lock Valve

Finished length2,180 mm

Locate this hose

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number 207-2627 before removing the hose.

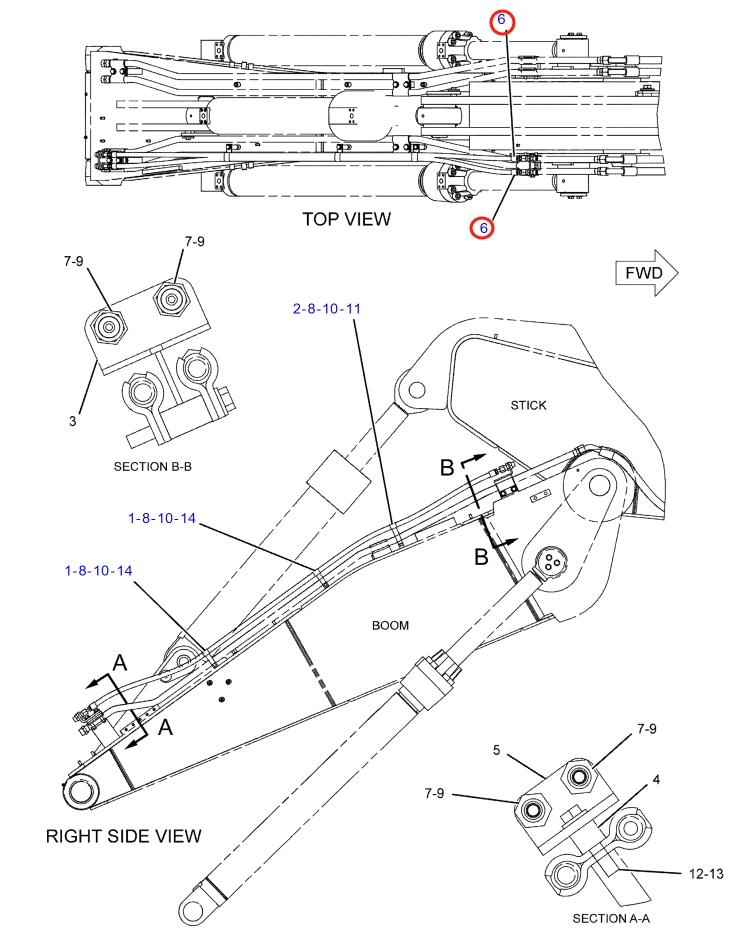

Caterpillar CAT®317B L installation diagram showing hydraulic hose 207-2627 at Pipe No. 6 — **Caterpillar CAT®317B L**Part 207-2627 · Pipe No. 6Open full-size diagram

Repair specifications

Part number: 207-2627
Diagram pipe number: 6
Installation route: 小臂油缸锁止阀
Hose specification: DN10;2SN-6;33Mpa
Finished length: 2,180 mm
Working pressure: 33 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 2

8E-0081

Installation route: 小臂油缸锁止阀

Length: 1,810 mm
Specification: DN13;4SP-8;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 13

137-4678

Installation route: 过渡接头(大臂油缸锁止阀)

Length: 3,600 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 2

137-6451

Installation route: 大臂(锁止阀)~分配阀上

Length: 2,100 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 7

207-2626

Installation route: 小臂油缸锁止阀

Length: 1,795 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 10

138-3408

Installation route: 过渡接头(大臂油缸锁止阀)

Length: 2,500 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 9

137-4678

Installation route: 大臂(锁止阀)~电磁阀(液压泵)

Length: 3,600 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 2

162-9399

Installation route: 小臂油缸锁止阀

Length: 4,020 mm
Specification: DN19;1SN-12;8.7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

160-4094

Installation route: 小臂油缸锁止阀

Length: 3,350 mm
Specification: DN19;1SN-12;8.7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
